Cyclone BX60028 Classic Collection Insert Range Hood Review: for Serious Home Cooking

Key Summary

The Cyclone Classic Collection Insert Range Hood BX60028 is a 28-inch, 600 CFM, ducted-only insert designed to disappear into a custom wood canopy while supporting high-heat home cooking. It uses baffle filters, a centrifugal blower, and three-speed push-button controls, with noise levels rated between 2 and 6 sones. This review fact-checks the key specifications against Cyclone’s official literature and leading retailer spec sheets, then translates them into practical pros, cons, and real-world use cases for homeowners and light-commercial spaces.

TL;DR

• The Cyclone BX60028 is a 28-inch stainless steel insert range hood from the Classic Collection, designed to be fully built into a wood canopy for a seamless, custom look.
• Verified specs: 600 CFM ducted airflow, 6-inch round top vent, centrifugal blower, 120 V / 60 Hz, 2.5 A, three-speed push-button controls, 2–6 sone noise rating, and two GU10 LED bulbs around 1.4–1.5 W each at 3000K warm white.
• Dimensions are approximately 28 3/8" wide, 12 1/2" high, and about 11" deep at the face, making it ideal for custom 30-inch wood canopies with a 6-inch round duct run.
• Strengths: strong 600 CFM performance for gas ranges and high-heat cooking, dishwasher-safe stainless baffle filters, time-delay off feature, and discreet design.
• Limitations: ducted-only (no recirculating kit), modest depth vs. some pro-style inserts, basic push-button controls, and sound levels that can be noticeable on high.
• Best for: homeowners or light-commercial users who want a powerful, value-focused insert hood hidden in a custom canopy above a 24–30" range or cooktop, and who already plan for ducted ventilation.

Product Introduction

If you are browsing insert range hoods on a site like Rise, the Cyclone Classic Collection BX60028 will usually sit in the middle of the lineup: more powerful than many basic 300–400 CFM liners, but simpler and more affordable than fully featured smart or pro-style inserts. Right above this paragraph is where you would typically see a product carousel comparing the BX60028 against similar 28–30 inch inserts, higher-CFM models for serious wok cooking, and quieter premium hoods with more advanced controls and deeper capture areas.

Cyclone BX60028 at a Glance: Verified Specifications

Before recommending any insert range hood, it is important to verify the core specifications against manufacturer documentation and consistent retailer listings. For the Cyclone Classic Collection Insert Range Hood BX60028, multiple independent spec sheets and manuals align on the following key details:

• Model and collection: Cyclone BX60028, Classic Collection insert range hood in stainless steel.
• Configuration: insert-style range hood designed to mount inside a custom wood canopy; ducted-only with a 6-inch round top exhaust.
• Airflow: rated at 600 cubic feet per minute (CFM), suitable for higher-heat gas ranges and more frequent cooking.
• Blower and fan: internal centrifugal blower with non-stick aluminum fan blades and an approximate fan speed in the 1500–1600 RPM range.
• Controls: simple three-speed push-button control panel with a time-delay off feature that can run the fan for a few additional minutes to clear lingering smoke and odors.
• Lighting: two GU10 LED bulbs, each around 1.4–1.5 watts at a warm 3000K color temperature, mounted toward the front underside of the hood to illuminate the cooktop.
• Filters: stainless steel baffle filters, angled to maximize capture and fully removable; the main baffles are dishwasher-safe for easier cleaning.
• Electrical: 120 V, 60 Hz, approximately 2.5 amps; total power consumption published between about 200 and 300 watts depending on the document and operating speed.
• Noise rating: sound levels in the range of 2 sones on low to around 6 sones on high, which is typical for 600 CFM internal blowers.
• Dimensions: overall width of roughly 28 3/8 inches, height of about 12 1/2 inches, and a face depth in the 10–11 inch range for the 28-inch version, with a 6-inch round duct connection on top.
• Finish: stainless steel body designed to be covered at the sides and top by a decorative wood canopy, with only the underside and a slim front edge usually visible from eye level.

Because the BX600 series also includes a wider BX60034 model, it is important to confirm you are looking at specifications for the 28-inch BX60028 if you are building around a 30-inch range base cabinet. Retailers sometimes show combined dimension diagrams for both widths; the 28-inch size corresponds to the smaller width and shallower depth numbers in those drawings.

Design and Build Quality: Classic Insert Hidden in a Custom Canopy

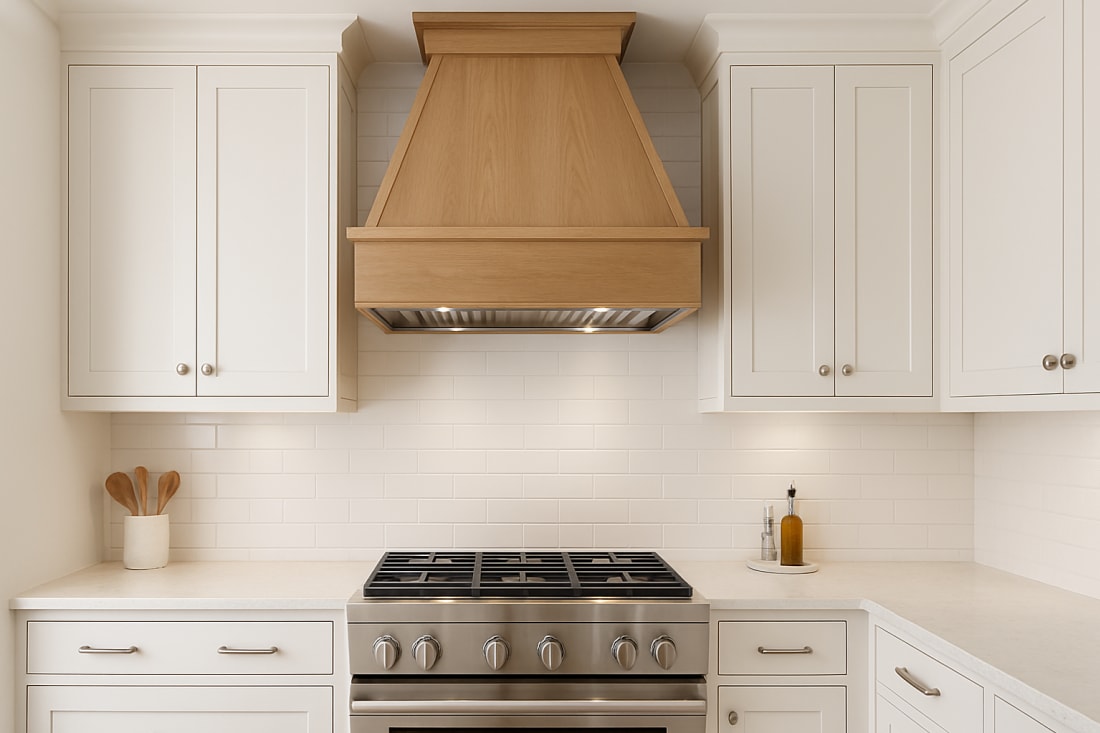

The Cyclone Classic Collection BX60028 is not a fully exposed stainless chimney hood; instead, it is an insert or “liner” that mounts into a custom wood range-hood surround. This design appeals to homeowners who want a furniture-like focal point above the range while still enjoying serious ventilation performance behind the scenes.

• Look and feel: The exposed parts of the hood are the stainless steel underside, baffle filters, and a narrow front control strip. When installed in a well-built canopy, most of the metal body is concealed, leaving a clean, integrated appearance.
• Materials: The housing and visible surfaces are stainless steel, which is durable, relatively easy to wipe down, and appropriate for kitchens with other stainless appliances. The fan uses non-stick aluminum blades to help reduce grease buildup.
• Form factor: With a height around 12 1/2 inches, the insert has enough internal volume for the blower and duct collar while still fitting inside many standard-depth custom hoods. The front-to-back depth is moderate, so the capture area is not as deep as some professional-style inserts, but it does not protrude uncomfortably into the cooking zone either.

For homeowners designing a new kitchen or retrofitting a decorative wood hood, the BX60028’s clean lines and fully recessed design provide a good balance between performance and aesthetics. The trade-off, which we will explore later, is that you do need a properly sized canopy and adequate ducting; the insert itself is not intended to function as a standalone exposed hood.

Performance: How 600 CFM and 2–6 Sones Translate in Real Kitchens

CFM (cubic feet per minute) and sones are two of the most important specifications to understand when selecting a range hood. For the Cyclone BX60028, the rated 600 CFM airflow and 2–6 sone noise range put it in a sweet spot for many residential and light-commercial kitchens that see frequent cooking, including searing, frying, and moderate wok use.

• 600 CFM airflow: In a typical home, building code guidance and ventilation best practices often suggest aiming for 100 CFM per linear foot of range for wall installations, and somewhat more for high-BTU gas ranges or island locations. For a 30-inch (2.5-foot) cooktop, 600 CFM gives you a generous margin for heavy cooking and helps capture steam and smoke quickly when used with a well-designed canopy.
• Centrifugal blower: The BX60028’s internal centrifugal blower is engineered to maintain airflow against typical residential duct runs when connected to a 6-inch round duct. It is not an external or inline blower system, so static pressure handling is reasonable but not as strong as some pro-level setups; short, straight ducting with few elbows will give you the best real-world performance.
• Noise (2–6 sones): A rating of around 2 sones on low is comparable to a quiet conversation or the hum of a modern refrigerator, while 6 sones on high is noticeably louder but still within the range many homeowners find acceptable during short cooking bursts. Proper duct sizing, good installation, and avoiding restrictive transitions can help keep noise closer to the published ratings.

In everyday use, most home cooks will run the BX60028 at a lower or medium setting for simmering and boiling, then bump it to high when searing or stir-frying. The 600 CFM rating gives it enough strength to clear visible smoke from typical pans, especially when the hood is mounted at the recommended height above the cooktop and paired with a canopy that fully covers the cooking surface with a small overhang.

Controls, Lighting, and Everyday Usability

While some premium insert hoods now include touch panels, remote controls, or app connectivity, the Cyclone BX60028 keeps things straightforward. Its interface and lighting are deliberately simple and focused on reliability.

• Three-speed push buttons: The control strip uses individual push buttons for low, medium, and high fan speeds, along with separate light and power controls. This layout is intuitive for guests and renters and avoids the complexity of multi-function touch pads.
• Time-delay off: A key usability feature is the time-delay off function, often around three minutes. After you finish cooking, you can activate this setting to keep the blower running while you sit down to eat, helping clear residual heat and odors without having to remember to turn the fan off later.
• LED task lighting: The two GU10 LED bulbs provide warm, targeted light at about 3000K, a color temperature many homeowners prefer for comfortable, accurate color rendering of food. GU10 bases are common, so replacing bulbs later should be straightforward, and the low wattage keeps energy use modest.

There is no built-in display, smart-home integration, or auto-sensing feature, which some higher-end inserts offer. For most residential users, though, the simple push-button layout and dependable LED lighting are more than adequate and easier to live with over many years.

Filters, Cleaning, and Maintenance

Grease management is a major factor in how enjoyable—or frustrating—it is to live with a range hood. Here, the Cyclone BX60028 balances performance and long-term maintenance with its stainless steel baffle filter design and fan blade materials.

• Baffle filters: Instead of flat mesh screens, the BX60028 uses stainless steel baffle filters that force air to change direction, causing grease droplets to condense on the metal surfaces. This style of filter is common in commercial kitchens and is prized for durability and better fire safety characteristics compared with unprotected mesh.
• Dishwasher-safe: The quick-release baffle filters can be removed and placed in a dishwasher for cleaning. Homeowners who cook frequently may want to run them through a hot cycle every few weeks or monthly, depending on usage, to keep airflow strong and noise low.
• Non-stick fan blades: The internal aluminum fan blades are described as non-stick, which is helpful for limiting grease buildup inside the blower housing. Periodic inspection and gentle cleaning per the installation manual will further extend performance and reduce vibration over time.

From a maintenance standpoint, the combination of baffle filters and accessible LED lamps makes the BX60028 manageable for most homeowners. The most important habits are to clean the baffles regularly, avoid running the hood without filters installed, and ensure the ductwork and wall or roof cap remain unobstructed.

Dimensions, Fit, and Installation Considerations

Insert range hoods like the Cyclone BX60028 must be carefully matched to the size of the range and the interior dimensions of the custom wood canopy. Getting this right is critical not only for appearance, but also for collection efficiency and safety.

• Nominal size: The BX60028 is described as a 28-inch insert, and spec sheets list an overall width of roughly 28 3/8 inches. This size is usually paired with a 30-inch cooktop or range below, giving you a small overhang of canopy on each side of the cooking surface.
• Height and depth: The published height is about 12 1/2 inches, with face depth in the range of 10–11 inches for the 28-inch model. These dimensions are important when designing the internal framing of the wood canopy and planning the vertical chase for the 6-inch duct run.
• Cutout template: Cyclone installation manuals provide specific cutout measurements for the BX600 series, including separate templates for the 28-inch and 34-inch variants. For accurate installation, your cabinet maker or installer should reference the BX60028 template and not assume that all insert hoods of similar width share the same cutout size.
• Mounting: The manual calls for supporting the hood using screws from inside the housing into the surrounding cabinet framework. Because inserts can be heavy, many installers prefer two people for the lift and secure step, along with careful alignment of the duct collar to the pre-installed ductwork.

For homeowners in cold climates or tightly sealed homes, it is also wise to discuss makeup air requirements with your contractor or local building official. In some jurisdictions, hoods at or above certain CFM thresholds require a dedicated makeup air system to prevent backdrafting of combustion appliances and to maintain comfort.

Ducting and Venting: 6-Inch Round, Ducted-Only Operation

Unlike some under-cabinet hoods that offer optional recirculating kits, the Cyclone BX60028 is a ducted-only insert. It is designed to connect to a 6-inch round duct that exhausts to the outdoors, which is strongly recommended for removing moisture, grease, and combustion byproducts from gas stoves.

• Vent location: The duct collar is on the top of the hood and sized for 6-inch round metal duct. The hood is not designed for rear or side discharge without transitions, and using smaller duct sizes can restrict airflow and increase noise.
• Duct length and configuration: For best performance, keep the overall duct run as short and straight as possible, use smooth-wall metal pipe instead of flexible duct, and minimize the number of elbows. Each elbow introduces additional resistance that effectively reduces real-world CFM below the rated 600.
• Termination: The duct should terminate in a properly sized exterior wall or roof cap with a backdraft damper. Undersized caps, clogged screens, or stuck dampers are common causes of higher noise and poor capture performance in any range hood, including the BX60028.

If you are replacing an older hood that used a different duct size, you may need a transition piece and possibly a short duct rework to keep the system as efficient as possible. When in doubt, consult with your HVAC contractor or appliance installer and show them the Cyclone ducting requirements.

Electrical Requirements and Safety

Cyclone’s documentation describes the BX600-series insert hoods as requiring a standard North American residential electrical supply, with safety notes that are typical of ducted range hoods. For homeowners planning rough-in work or upgrades, these details are important to confirm with an electrician.

• Power supply: 120 volt, 60 hertz AC power, drawing roughly 2.5 amps under normal operation. This is modest enough that, in many homes, a dedicated 15-amp circuit is sufficient, but local codes may have specific requirements for kitchen ventilation runs.
• Connection: The BX60028 uses a plug-in connection to a junction box or receptacle installed in the cabinet above the hood. Cyclone’s installation instructions consistently state that the circuit must be properly grounded and protected by a circuit breaker or time-delay fuse.
• Installer qualifications: The manufacturer recommends that all electrical work be performed by a qualified electrician familiar with applicable local codes and standards. This is not only a safety issue but also helps preserve warranty coverage.

From a homeowner’s perspective, the most practical takeaway is to plan a dedicated, grounded outlet in the upper cabinet or canopy space and ensure that any junction boxes remain accessible for future service without dismantling the entire hood.

Where the Cyclone BX60028 Shines: Ideal Use Cases

When matched with the right kitchen and cooking style, the Cyclone Classic Collection BX60028 can be a very satisfying choice. Its design and spec profile align particularly well with several common residential and light-commercial scenarios.

• Custom 30-inch ranges and cooktops: The 28 3/8-inch insert size pairs naturally with 30-inch cooking surfaces and standard-width base cabinets, providing a clean, proportional canopy above without excessive overhang.
• High-heat but not ultra-pro cooking: At 600 CFM, the BX60028 is strong enough for pan searing, stir-frying, and frequent sautéing in a typical home. It is not, however, a 1000+ CFM pro-hood replacement for large commercial-style ranges with oversized griddles and multiple ovens.
• Design-focused renovation projects: Homeowners who care deeply about the visual impact of a custom wood hood, shiplap or plaster chase, or other architectural focal points often prefer insert hoods like this one, where the stainless hardware remains mostly hidden.
• Light-commercial or multi-unit applications: Small cafes, boutique rental units, or higher-end multi-family kitchens with 30-inch ranges can benefit from a 600 CFM insert that looks built-in and is straightforward for maintenance crews to service.

If your primary goals are a clean, furniture-like hood appearance, reliable 600 CFM performance, and manageable cost, the BX60028 is likely to align well with your project—especially when compared with lower-CFM inserts that may struggle with smoke during heavier cooking.

Where the BX60028 Falls Short: Limitations and Trade-Offs

No range hood is perfect, and a fact-based review should make clear where the Cyclone BX60028 may not be the right choice. Several limitations stem from its mid-range price point and straightforward design approach.

• Ducted-only operation: The BX60028 does not offer a factory-recognized recirculating or ductless kit. If you cannot vent to the outdoors because of building layout or condo restrictions, this insert will not be suitable without significant modifications, which are generally not advised.
• Moderate capture depth: While its front-to-back depth is fine for many applications, it is not as deep as some professional inserts designed for extra-wide or extra-deep cooking surfaces. If your cooktop is set forward or you use oversized front burners heavily, a deeper hood might capture smoke more effectively.
• Sound on high: A 600 CFM internal blower rated around 6 sones on high will be noticeable during intense cooking. If you are extremely sensitive to noise or cook on high very frequently, you may want to compare against quieter, larger-housing inserts or setups that use external or inline blowers.
• Basic controls: The three-speed push-button panel is simple and durable, but it lacks digital readouts, automatic boost modes, filter-clean indicators, and connectivity features that some higher-end brands now offer.

These trade-offs are not flaws as much as consequences of the BX60028’s design priorities: solid performance and value in a compact insert body. Understanding these limitations helps you decide whether to step up to a more advanced hood or keep your project focused on this classic-style insert.

Cyclone BX60028 vs. Other Insert Range Hoods

On an e-commerce site like Rise, the Cyclone BX60028 would typically be listed alongside a handful of comparable insert hoods from other manufacturers as well as Cyclone’s own wider BX60034 model. While exact competitors vary by retailer, there are consistent themes in how this hood compares.

• Compared with lower-CFM inserts (300–400 CFM): The BX60028 usually delivers meaningfully stronger capture for frying and searing, especially in open-plan kitchens. Lower-CFM units may be adequate for light cooking but may struggle with smoke and lingering odors during heavy use.
• Compared with high-end pro inserts (700–1200+ CFM): Pro-level inserts often have deeper bodies, larger blowers, and sometimes remote motors, which can reduce perceived noise. They are also typically more expensive and may require makeup air systems and more robust ducting. The BX60028 occupies a more accessible middle ground for typical residential use.
• Within the Cyclone line: The BX60028 and BX60034 share the same core design but differ in width and depth to serve 30-inch versus 36-inch cooking surfaces. When browsing, it is important to choose the model that matches your range width and canopy design; a 34-inch insert is better suited for a 36-inch range, whereas the BX60028 is intended for the more common 30-inch category.

If a site like Rise offers comparison tools, you will typically want to sort by CFM, width, noise rating, and ducting requirements. The Cyclone BX60028 will stand out as a 600 CFM, 28-inch-wide, 6-inch duct insert with a relatively compact profile and classic styling at a mid-range price point.

How to Know if the Cyclone BX60028 Is Right for You

To decide whether the Cyclone Classic Collection BX60028 fits your project, it helps to work through a short checklist that focuses on range size, cooking style, ventilation constraints, and design priorities. The answers will often make the choice clearer than comparing spec tables alone.

• Is your range or cooktop 30 inches wide? The BX60028 is optimized for a 30-inch cooking surface. If you have a 36-inch range or larger, you should instead look at the BX60034 or another wider insert.
• Can you install a 6-inch duct to the outdoors? If the answer is no—or if your building restricts new penetrations—you will need a recirculating hood instead, as the BX60028 is not designed for ductless use.
• How often do you cook at high heat? If you frequently pan-fry, stir-fry, or cook with multiple high-BTU burners at once, 600 CFM is a practical baseline. Light cooks who only boil water and reheat may not need this much power, but it does provide more margin for future needs.
• Is a fully integrated wood or custom canopy a must-have for your kitchen design? If you want the hood to disappear visually while still functioning effectively, an insert like the BX60028 is what you are looking for.
• Do you prefer simple, durable controls over advanced electronics? If yes, the BX60028’s push-button interface is a positive; if you want touch screens, wireless remotes, or smart features, you may want to compare with higher-end options.

For many homeowners planning a mid- to high-quality kitchen renovation with a 30-inch range, the answers to these questions will lean toward the Cyclone BX60028 as a strong candidate—particularly when outdoor venting is feasible and design integration is a priority.

Practical Buying Tips and What to Ask Your Installer

Buying an insert range hood is as much about planning and installation as it is about the model itself. To get the most value from the Cyclone BX60028 and similar products on an e-commerce site like Rise, consider the following questions and tips before you finalize your purchase.

• Confirm all dimensions: Cross-check the BX60028’s published width, depth, and height against your cabinet drawings and canopy design. Ask your cabinet maker to work from the official cutout template for this specific model.
• Plan the duct path early: Before cabinetry is ordered, decide exactly where the 6-inch duct will run—straight up through the roof, out a side wall, or through a soffit—and confirm there is enough space for smooth metal duct without tight bends.
• Discuss makeup air: If your local code or builder raises concerns about high-CFM hoods, ask whether 600 CFM will trigger a makeup air requirement, and factor any needed equipment into your budget and design.
• Ask about service access: Have your installer show you how to remove the baffle filters and access the LED bulbs, blower, and any internal connections for future maintenance.
• Verify warranty and support: Check the warranty coverage for the Cyclone BX60028 and clarify who will handle any future issues—the retailer, the installer, or Cyclone’s service network—so there are no surprises later.

Taking these steps at the planning stage can prevent many of the common performance and satisfaction issues homeowners experience with range hoods, and they help ensure that a capable insert like the BX60028 delivers the ventilation quality and comfort you expect.

Summary: Who Should Choose the Cyclone Classic Collection BX60028?

After reviewing the Cyclone Classic Collection Insert Range Hood BX60028’s specifications and installation requirements and translating them into real-world use, a clear buyer profile emerges. This hood is best suited for homeowners and light-commercial operators who want reliable 600 CFM performance in a compact 28-inch insert that disappears into a custom canopy. It rewards careful planning and proper ducting with strong everyday performance and manageable maintenance.

• Choose the Cyclone BX60028 if you have a 30-inch range, can run a 6-inch duct outdoors, and prioritize a custom wood hood look with solid, value-oriented performance.
• Consider alternatives if you cannot vent outdoors, have a much larger or deeper range, or strongly prefer ultra-quiet operation with advanced digital controls and connectivity.

On a site like Rise, you will often see the Cyclone BX60028 positioned as a practical, mid-range insert that pairs excellent 600 CFM ventilation with a straightforward, durable design. For many residential kitchens, that balance of power, simplicity, and hidden installation is exactly what makes it a compelling choice.
