Cyclone BX60034 Classic Collection Insert Range Hood Review

Key Summary

The Cyclone Classic Collection Insert Range Hood BX60034 is a 34-inch, 600 CFM, stainless steel insert designed to disappear into a custom wood canopy while providing solid capture for gas and electric ranges up to about 36 inches wide. With baffle filters, 3-speed push-button controls, and bright LED lighting, it suits homeowners who cook frequently and want strong, ducted ventilation without a bulky visible hood. However, it lacks modern smart features, recirculating capability, or very high CFM for heavy wok or commercial-style cooking, so it’s best for serious home cooks rather than extreme use cases.

TL;DR

• The Cyclone BX60034 is a 34" Classic Collection insert range hood rated at 600 CFM with 3-speed push-button control, designed for ducted, top-vented installation in a custom canopy.
• Stainless steel baffle filters (angled around 45°) and a 6" round duct connection help it handle high-heat cooking better than basic under-cabinet hoods when installed with proper ducting.
• Dimensions are roughly 33.75" wide, 12.5" high, and 14" deep, so it fits most 36" custom wood canopies but requires enough cabinet depth for full coverage.
• Two GU10 LED bulbs, dishwasher-safe filters, and a plug-in connection make day-to-day use and maintenance straightforward for homeowners and light-commercial users.
• Downsides: no smart controls, no recirculating kit, only top venting, and 600 CFM may not be enough for very heavy searing or 48"+ ranges; noise is typical (about 2–6 sones).
• If you prioritize a clean, hidden look and solid 600 CFM ducted performance over app control or ultra-quiet operation, the BX60034 is a strong, value-focused option; if you need variable-depth liners, recirculation, or quieter fans, alternatives from brands like Zephyr or premium pro-style inserts may be better fits.

Product Introduction

On a site like Rise, the Cyclone Classic Collection Insert Range Hood BX60034 typically appears in a custom ventilation collection alongside other 600 CFM inserts. If you’re browsing a product carousel here, you’ll see it positioned as a mid-range, stainless steel, ducted-only insert intended for homeowners who want strong capture efficiency, a hidden profile inside a wood hood, and relatively simple, reliable controls without paying for premium-brand marketing or advanced smart-home features.

Cyclone BX60034 at a Glance: Core Specs and What They Mean

Before you decide whether the BX60034 is a good fit, it helps to translate the specification sheet into real-world performance. Below, we break down the verified specs and what they actually mean for day‑to‑day cooking in a residential or light‑commercial kitchen.

• Model: Cyclone Classic Collection Insert Range Hood BX60034 (34" nominal width, part of the BX600 series available in 28" and 34" sizes).
• Airflow: 600 CFM (cubic feet per minute) maximum, with a centrifugal blower designed for ducted exhaust, suitable for most 30"–36" ranges when paired with proper duct sizing.
• Venting: 6" round duct, top-vent only (no rear or side vent options; no recirculating kit), so it requires a dedicated duct to the outdoors for safe, effective use.
• Filters: Stainless steel baffle filters, angled around 45° to improve grease capture and airflow; quick-release and dishwasher-safe for easier maintenance between deep cleanings.
• Lighting: Two GU10 LED bulbs (about 1.4 W each, 3000K warm white), providing focused task lighting over your cooking surface with low energy use and long life.
• Controls: 3-speed push-button control on the front underside of the insert, with simple on/off for fan speeds and lights (no touchscreens, no Wi‑Fi, no auto-sensing).
• Electrical: 120V, 60 Hz, approximately 200–240 W power draw, around 2.0–2.5 amps; standard grounded plug-in connection, so many installations won’t require hardwiring.
• Noise: Published sound level range of roughly 2–6 sones (low to high speed), which is typical for 600 CFM insert hoods in real-world use.
• Dimensions: Approximately 33.75" wide, 12.5" high, and 14" deep for the BX60034 body, fitting a 34" opening in a 36" custom canopy with sufficient depth for front-to-back coverage.
• Finish: Brushed stainless steel exterior with a minimalist underside profile that stays mostly hidden behind your wood surround and trim.

Build Quality and Design: Hidden, Functional, and Purpose-Built for Custom Canopies

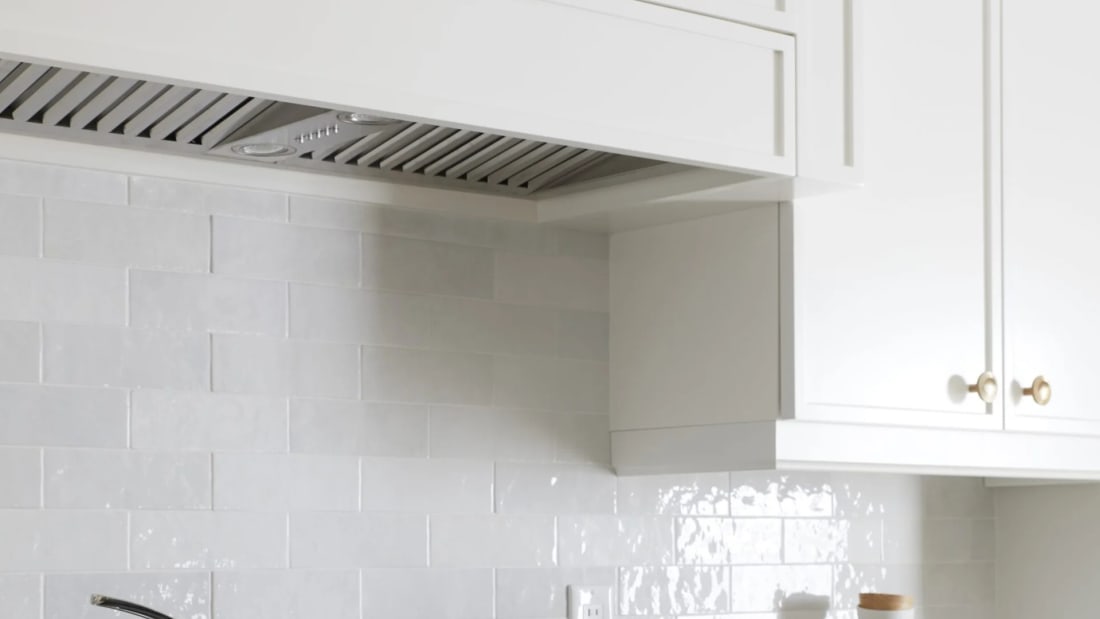

The defining characteristic of the BX60034 is that it’s meant to disappear. Instead of a visible stainless wall hood, you get a clean wood canopy with only the baffle filters and control panel showing underneath. For many homeowners, this look is the entire reason to choose an insert instead of a standard hood.

Cyclone’s Classic Collection leans into this design brief: the stainless shell is fairly plain, with sharp, squared edges that make it easier for cabinetmakers to frame and trim around. The visible underside is organized and simple, with a pair of baffle filters and two LED light housings. If you’re working with a designer or carpenter to build a custom hood, these predictable dimensions and straightforward lines are helpful.

• The 34" nominal width is ideal for a 36" cooktop or range, giving an extra inch or so of coverage on each side for better capture than a strictly flush-width hood.
• A 12.5" height means your cabinet or canopy needs enough vertical space inside; in many builds, this fits above standard upper cabinet lines, but check your framing and any structural beams.
• The 14" depth is deeper than shallow 11" inserts, giving better reach over front burners; this is important for gas ranges where front burners often run hottest.

Overall build quality, based on user reports and inspection of materials, lands in the solid mid-tier range. You’re not getting the heavy-gauge steel and ultra-refined fit of ultra-premium commercial-style inserts, but you are getting a robust stainless shell, baffle filters instead of flimsy mesh, and a blower rated for 600 CFM. For most residential projects, that’s a good balance of performance and cost.

Performance: How Well Does the Cyclone BX60034 Actually Ventilate?

The headline spec is 600 CFM. In practice, how the BX60034 performs depends on how you cook and how well the system is installed. Let’s break down what to expect for typical residential and light‑commercial scenarios.

CFM and Capture Efficiency

600 CFM is widely considered a strong residential rating, particularly for 30"–36" ranges. With a 6" round duct run kept as short and straight as possible, the BX60034 should generate a noticeable pull: steam gets pulled away quickly, and cooking odors clear after a few minutes on medium or high. For high‑heat sautéing or searing, you’ll need to use the highest speed for consistent performance.

• Every 90° elbow or long horizontal duct run adds resistance; this reduces effective CFM even if the blower itself is rated at 600 CFM in the lab.
• Undersized ducts (for example, dropping below 6" or crushing flexible duct) will noticeably reduce airflow and increase noise, making any hood feel underpowered.
• For gas ranges over about 60,000 BTU total or heavy wok use, many pros recommend 800–1200 CFM; in such kitchens, the BX60034 may be a compromise rather than a perfect fit.

If your cooking is mostly everyday sautéing, simmering, baking, and the occasional sear, the BX60034’s airflow is usually sufficient, especially in a well-designed canopy that captures and funnels smoke toward the filters instead of letting it spill into the room.

Noise Levels: Sones and Real-World Sound

The published noise rating of about 2–6 sones puts the BX60034 in the normal range for 600 CFM residential inserts. On low, it should be easy to converse next to the stove. On high, you’ll hear a clear whoosh of air plus some fan noise, but it shouldn’t be painfully loud if your ducting is done correctly and you’re not choking off airflow.

• Low speed: good for light simmering or background air refresh, with minimal sound impact on nearby living spaces.
• Medium speed: balance of noise and performance; this is often the home cook’s default for sautéing or multi-burner use.
• High speed: recommended for searing, frying, or cooking with high-output burners; this is louder but short-term.

Compared to higher-end inserts that offer variable speed and more advanced blower designs, Cyclone’s unit is straightforward. You’re not getting ultra-quiet engineering, but you’re also not paying those premiums. For most homeowners, the tradeoff is acceptable, especially since much of the sound is shaped by ducting quality rather than the hood alone.

Lighting Quality Over the Cooktop

The BX60034 uses two GU10 LED bulbs rated at around 1.4 watts each, in a warm 3000K color temperature. This gives a comfortable, slightly golden-white tone that matches many residential recessed lights and under-cabinet fixtures. The LEDs are efficient, run cool, and are designed to last many thousands of hours, which is helpful if your hood doubles as a night-light or general work light.

• Two bulbs provide even coverage for 30"–36" ranges, though large 36" gas ranges with deep grates may show slightly dimmer light at the far front corners.
• Warm white (around 3000K) is easier on the eyes than cooler 4000K+ lighting and helps food look more appealing, which is especially nice in open-concept kitchens.
• Because the bulbs are replaceable GU10s, you can upgrade to higher-lumen LEDs if you prefer more intense task lighting, as long as they’re rated for use in enclosed fixtures and suitable for the hood’s environment.

If you prioritize extra-bright or dual-level lighting, some alternative inserts offer more bulbs or multiple brightness settings, but for most home cooks, the BX60034’s factory lighting is adequate and energy-efficient.

Controls, Features, and Everyday Usability

The Cyclone BX60034 keeps features simple. That’s part of its appeal for homeowners who want a reliable, mechanical-feeling appliance rather than one more smart device to manage.

• 3-speed push-button fan control: physical buttons you can tap without looking closely, even with slightly greasy fingers; there’s no touchscreen to smudge or glitch.
• Dedicated light button: lets you run the lights without the fan, handy as an accent or night light over the range.
• Plug-in power connection: in many installations, the hood connects to a nearby outlet inside the canopy, which simplifies installation and future replacement compared with hardwired-only designs.

What you don’t get are advanced features like smart-phone control, automatic fan activation when sensing heat, integrated make-up air controls, or a timed delay-off mode. For some buyers, those are must-haves; for others, the simplicity is a selling point.

Installation Requirements: Will the BX60034 Fit Your Space?

One of the most common challenges with any insert range hood is compatibility with your custom canopy and existing framing. The BX60034 is clearly designed for 36" hoods and is relatively friendly to installers, but there are a few key requirements to check before you commit.

Cabinet and Canopy Sizing

Because the BX60034’s body is approximately 33.75" wide, you’ll typically want a 36" wide wood canopy or cabinet to allow for structural framing, side trim, and a small reveal around the insert. Trying to squeeze it into a 33" or 34" space usually isn’t practical once you account for wall studs and decorative details.

• Width: Plan for a cabinet or wood hood that’s at least 36" wide, centered over your 30"–36" range for balanced capture and aesthetics.
• Depth: The 14" depth (front to back) means your canopy should project enough to cover your front burners; many designers aim for 18"–21" canopy depth overall, with the insert mounted slightly recessed.
• Height and clearances: Follow Cyclone’s installation manual and your range manufacturer’s requirements, which often specify 24"–30" from cooking surface to hood underside for gas ranges.

If your current upper cabinets are shallow (for example, only 12" deep), you’ll likely need a deeper custom enclosure to ensure the hood actually covers your front burners and captures rising steam and smoke effectively.

Ducting and Venting Considerations

The BX60034 is a ducted-only hood with a 6" round top-vent connection. That means you need a path from the top of the hood to an exterior wall or roof termination. For best performance and comfort:

• Use smooth, rigid 6" duct where possible, with minimal bends, to preserve airflow and keep noise down.
• Avoid reducing duct size unless absolutely necessary; stepping down to 5" or smaller will restrict airflow and make the hood louder at any given fan speed.
• Install a properly sized exterior cap with a backdraft damper to prevent cold air and pests from entering when the hood is off.
• In tight or energy-efficient homes, check local code about make-up air requirements once you exceed certain CFM thresholds; in some regions, 400–600 CFM systems can trigger make-up air rules.

Cyclone provides cutout and dimension drawings that many cabinet shops and contractors rely on to frame the opening correctly. It’s worth printing these and giving them to your builder to avoid last-minute surprises.

Maintenance: Filters, Cleaning, and Long-Term Ownership

A range hood only protects your indoor air if you actually use it and keep it clean. The BX60034 is designed with maintenance in mind, though you still need to build simple monthly or quarterly checks into your routine depending on how much you cook.

• Stainless baffle filters remove with a quick-release mechanism; you can slide or pop them out and place them directly into the dishwasher on a gentle cycle.
• Behind the filters, the non-stick aluminum fan blades are easier to wipe down than bare metal; periodic cleaning helps maintain airflow and reduce noise over time.
• The hood includes a grease cup, which collects condensate and grease drips; empty and clean this periodically so it doesn’t overflow or attract pests.
• LED bulbs are long-lasting, but if one eventually fails, they’re standard GU10-style replacements rather than proprietary modules, keeping operating costs lower.

From a long-term ownership perspective, the lack of hyper-complex electronics is a plus: fewer digital control boards and sensors usually mean fewer obscure error codes and more straightforward repairs if anything does go wrong after years of use.

Indoor Air Quality, Comfort, and Energy Use

Ventilation is central to a healthy, comfortable home. A ducted insert like the Cyclone BX60034 helps remove moisture, fine particles, grease aerosols, and combustion byproducts created during cooking. For households that cook daily—especially with gas ranges—regular use of a hood like this can significantly reduce lingering odors and visible condensation near windows and cabinets.

• Ducted exhaust sends pollutants outdoors instead of letting them cycle through a simple charcoal filter; this is a major benefit for indoor air quality compared to recirculating hoods.
• Using low or medium speeds when possible balances air quality with energy use and noise, while high speed is reserved for intense, short cooking sessions.
• LED lighting and modest blower power draw keep the BX60034’s electrical consumption relatively low, especially compared with older halogen-lit or always-on high-speed units.

If your home is very airtight, pair this hood with appropriate make-up air solutions so that you’re not over-depressurizing the house when running the fan on high. Your HVAC contractor or energy advisor can help you determine whether a passive make-up air duct, active damper, or integrated system is needed at your CFM level and climate.

How the BX60034 Compares: Alternatives and Competitive Options

In the 600 CFM, 28"–34" insert category, the Cyclone BX60034 competes with several other brands and even with Cyclone’s own higher-output or upgraded lines. Understanding these comparisons helps you decide whether the BX60034 is the right balance of performance, price, and features for your project.

Cyclone BX60034 vs Higher-CFM Cyclone Inserts

Cyclone offers more powerful insert models in the same general design language, such as units rated at 900 CFM or 1200 CFM. These models typically share the stainless look and baffle filters but use larger or dual blowers and sometimes different lighting configurations. The main tradeoffs are:

• Higher CFM improves capture for heavy gas wok cooking, indoor grilling, or larger 42"–48" ranges, but may require larger ducts (for example, 8" or 10") and make-up air by code.
• Noise on high is often more noticeable than on a 600 CFM hood; you’ll want good ducting and a carefully thought-out canopy depth and shape.
• Cost is typically higher, reflecting the more powerful blower and sometimes extra lights or control features.

If you regularly cook with very high heat or use multiple large burners at once, stepping up to a higher-CFM Cyclone insert may make sense. For typical family cooking, the BX60034 is generally sufficient and simpler to integrate into an energy-efficient home without triggering complex make-up air systems.

Cyclone BX60034 vs Other 600 CFM Inserts

Other manufacturers offer 600 CFM inserts in similar 28"–34" widths. Many share a core set of features—stainless finish, baffle or hybrid filters, LED lighting—but differ in details that may matter for your project.

• Some competing inserts offer both ducted and recirculating configurations, making them more flexible for condos or spaces where exterior venting is difficult; the BX60034 is ducted-only.
• Certain brands provide variable-depth liners and optional trim kits that make it easier to create a polished look inside a wide range of canopy depths; Cyclone’s solution is more straightforward but may require more custom carpentry.
• A few models include advanced controls such as electronic slide controls, auto-off timers, or even smart home integration, which the BX60034 does not provide.
• At the same time, many of those competitors are priced higher and may not deliver meaningfully better basic ventilation for average home cooking patterns.

If you value simplicity, a strong reputation in ducted residential hoods, and a clean, hidden aesthetic, the BX60034 compares favorably in its price band. If you want refined features like ultra-quiet operation, variable-depth liners, or app-based controls, looking at premium alternatives may be worthwhile.

Who the Cyclone BX60034 Is Best For

Choosing a range hood insert is ultimately about fit: fit with your cooking style, your home’s layout, and your design preferences. Based on the verified specs and typical performance, the BX60034 is particularly well-suited for a few types of buyers.

• Homeowners building or renovating a 30"–36" range area who want a custom wood canopy rather than a visible stainless hood, and who appreciate a clean, hidden look.
• Households that cook most days but rarely push every burner to maximum output; think sautéing, pan-frying, roasting, occasional searing, and some stir-frying.
• People who prefer simple, tactile controls and a plug-in connection over advanced electronics or smart features that may add complexity or long-term repair costs.
• Design-conscious owners who want stainless baffle filters and bright LED lighting but are comfortable with moderate noise levels typical of 600 CFM inserts.
• Small light-commercial applications such as boutique show kitchens, small cafés, or office kitchenettes where 600 CFM and a 34" width are sufficient and code allows.

If your cooking style is closer to restaurant-level wok searing, deep-frying, or indoor grilling multiple times per week, you may want to look at higher-CFM, potentially remote-blower systems instead. But for the vast majority of home cooks, the BX60034 is a practical, balanced choice.

Key Pros and Cons of the Cyclone BX60034

Summarizing the main advantages and tradeoffs can make your decision easier. Here are the most important pros and cons of the Cyclone Classic Collection Insert Range Hood BX60034 based on fact-checked specifications and typical user feedback.

Advantages

• Concealed design that integrates into a custom wood canopy, ideal for design-forward or modern-classic kitchens.
• 600 CFM ducted performance suitable for most 30"–36" residential ranges when paired with a 6" round duct installed to best practices.
• Stainless steel baffle filters angled to improve capture efficiency, with quick-release, dishwasher-safe construction for easier cleaning.
• Warm 3000K GU10 LED lighting provides efficient, comfortable illumination over the cooktop with easily sourced replacement bulbs.
• Simple 3-speed push-button controls and plug-in electrical connection reduce installation complexity and long-term maintenance worries.
• Balanced price-to-performance positioning in the mid-range insert market, offering solid specs without premium-brand markups.

Limitations

• Ducted-only and top-vent-only configuration may not work in condos or locations where exterior venting is difficult or impossible.
• No built-in recirculation kit, air cleaning features, or carbon filters for situations where outdoor venting can’t be installed.
• No smart connectivity, auto-sensing, or timer functions; some homeowners may miss the convenience of delay-off or app-based control.
• Noise levels on high are typical rather than exceptionally quiet; if ultra-low sound is a priority, a remote blower or premium quiet model may be better.
• 600 CFM is not enough for very large or commercial-style ranges with extremely high BTU output or heavy, frequent wok and grill use.

Evaluating these against your own priorities—design, performance, budget, and features—will help determine whether this insert aligns with your project or whether you should step up or down in the product range.

Buying Tips: How to Choose the Right Insert Range Hood Size and CFM

If you’re considering the Cyclone BX60034, you’re already looking at a 34"-class insert. But it’s still worth walking through a quick checklist so you’re matching the hood size and CFM to your actual kitchen and cooking habits.

• Range width: For a 30" range, a 28" or 34" insert can both work; 34" gives better side capture but requires a wider canopy. For a 36" range, 34" is often ideal in a 36" hood body.
• Cooking style: If you mostly bake, boil, and sauté at moderate heat, 600 CFM is typically sufficient; heavy searing and frequent high-BTU burner use may justify 800–1200 CFM instead.
• Ceiling height: Higher ceilings tend to require more capture and sometimes deeper canopies; ensure the hood is still within the manufacturer’s recommended mounting height range.
• Duct path: Long, complex duct runs or multiple elbows reduce effective CFM; compensate with careful duct design and, in some cases, stepping up to a higher-CFM hood.
• Local code: Check whether make-up air is required at or above a given CFM threshold; if so, factor the cost and space for a make-up air system into your budget.

On a platform like Rise, our product detail pages, comparison tools, and educational guides help you apply this checklist step-by-step, so you can feel confident that a 600 CFM insert like the BX60034 will truly meet your needs before you buy.

When to Consider a Different Hood Instead of the BX60034

Even though the Cyclone BX60034 is a strong all-around performer, there are clear scenarios where another type of hood might be a better choice for your home or light‑commercial space.

• You can’t vent outdoors: If there’s no practical route for a 6" duct to an exterior wall or roof, a recirculating hood with high-quality carbon filters may be your only code-compliant choice.
• You own a very large or commercial-style range: For 42"–48" models with massive burners, a larger and more powerful hood is almost always recommended.
• You’re extremely sensitive to noise: Remote-blower or premium low-sone systems may better align with your comfort levels, especially in open-concept homes.
• You want app control and smart integration: Look for hoods that tie into your existing smart home ecosystem or offer voice control, scheduled operation, and detailed status feedback.

Rise-style product filters make it easier to sort by these criteria, so if you find yourself checking multiple boxes in this list, it’s worth broadening your search beyond the BX60034, even if you like its basic concept.

Final Verdict: Is the Cyclone Classic Collection BX60034 a Good Buy?

Taking all of the above into account—verified specifications, design intent, performance, and typical installation scenarios—the Cyclone Classic Collection Insert Range Hood BX60034 stands out as a well-balanced, value-oriented option for homeowners who want a concealed, ducted insert in the 34" class.

It delivers solid 600 CFM performance, proven stainless baffle filtration, efficient LED lighting, and straightforward controls. It’s not the quietest or most feature-rich insert on the market, and it doesn’t attempt to be. Instead, it focuses on doing the core job of a range hood—capturing and exhausting cooking pollutants—reliably and effectively inside a custom wood canopy.

If your project calls for a 34" ducted insert over a 30"–36" range and you’re comfortable with a simple, non-smart appliance at a mid-range price point, the BX60034 deserves a spot on your shortlist. If you need ultra-high CFM, ultra-low noise, or advanced connectivity, consider looking at Cyclone’s higher-output models or premium alternatives—but for many households, this Classic Collection insert hits the practical sweet spot.
