Key Summary

The Cyclone SV130 is a compact, ductless energy recovery ventilator built to deliver balanced, continuous fresh air to a single room up to roughly 500 square feet. It uses a ceramic energy accumulator to capture heat and some moisture from outgoing air and transfer it to incoming air, helping maintain comfort while improving indoor air quality with very low noise and power draw.

TL;DR

• The Cyclone SV130 is a through-the-wall, ductless ERV for single rooms such as bedrooms, apartments, offices, cottages, and hotel rooms up to about 500 square feet.
• It alternates exhaust and supply modes through an antibacterial ceramic core that can recover up to about 88% of the heat energy, reducing the load on heating and cooling systems.
• Noise levels as low as 0.2 sones and very low power consumption make it suitable for quiet spaces where fans or larger equipment would be intrusive.
• The unit offers balanced ventilation, basic filtration, and humidity support but is limited to single-room use and still needs careful placement and wall conditions for straightforward installation.
• It is a strong fit for targeted ventilation upgrades, retrofits, and small projects, but it is not a replacement for a whole-home ventilation system in larger houses or multi-room layouts.

Product Introduction

If you are looking to improve ventilation in a single room without running new ductwork or installing a larger central ERV, the Cyclone SV130 offers a compact, through-the-wall solution that focuses on quiet operation and high energy recovery. Below, we take a detailed, non-promotional look at how this unit performs in real-world residential and light-commercial settings, how it compares with other small ERV options, and when it may or may not be the right tool for the job.

1. Overview: What the Cyclone SV130 Is Designed For

The Cyclone SV130 Ductless Single Room High-Efficiency Energy Recovery Ventilator is a compact ventilation unit intended to serve one enclosed space rather than an entire home or building. It is designed to provide **balanced, continuous fresh air** while recovering a significant portion of the heating or cooling energy that would otherwise be lost with simple exhaust-only fans or open windows.

According to manufacturer specifications, the SV130 is sized for spaces **up to about 500 square feet**. This typically corresponds to bedrooms, small studio apartments, home offices, hotel rooms, and similar single zones rather than multi-room layouts. In these spaces, stale indoor air can build up quickly, especially in tight, well-insulated buildings with sealed windows.

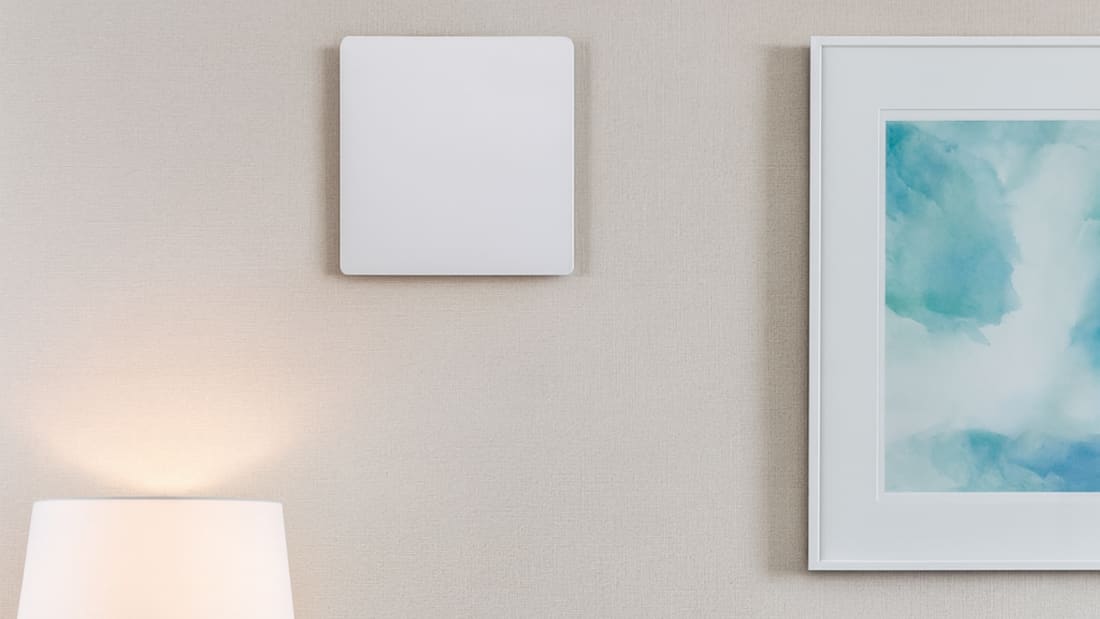

Instead of ducting air between rooms or to a central air handler, the SV130 mounts **through an exterior wall** and serves that specific room. Its small form factor and self-contained design make it a candidate for:

• Modern airtight condos or apartments where windows are often closed and bathroom fans are not enough for continuous air exchange.
• Bedrooms where indoor air quality and low noise are a priority, such as for light sleepers or people with allergies or asthma.
• Home offices or dens that may have electronics and occupants generating heat and CO2 for long periods.
• Cottages, cabins, and vacation rentals that need fresh air but may not justify or easily accommodate ducted ventilation.
• Hotel rooms, student housing, or dorms where individual room control and quiet operation are important for comfort.

By targeting a single space and balancing air in and air out, the SV130 aims to reduce issues such as condensation on windows, persistent odors, and buildup of indoor pollutants, without introducing significant drafts or uneven pressure compared to exhaust-only fans.

Balanced ventilation for up to 500 square feet

In the context of ventilation, “balanced” means that approximately the same volume of air is being supplied to the room as is being exhausted. This helps avoid problems such as negative pressure, which can draw unconditioned outdoor air or even combustion gases from other parts of a building. For rooms around 500 square feet or smaller, a single SV130 can often meet basic continuous ventilation needs, depending on occupancy and local code requirements.

2. How the Cyclone SV130 Ductless ERV Works

At its core, the Cyclone SV130 is an **energy recovery ventilator** built into a compact through-the-wall form factor. The main component that sets it apart from a simple fan is its **ceramic energy accumulator**, sometimes called a regenerative heat exchanger. Understanding how this element functions makes it easier to see how the unit can provide fresh air while maintaining room comfort.

Step-by-step air cycle

Unlike larger ERVs that move supply and exhaust air streams simultaneously through separate ducts, the SV130 typically operates in **alternating cycles** using a reversible fan and the same ceramic core. The process can be summarized in four main steps:

• Exhaust phase: Warm, stale indoor air is pulled from the room and blown through the ceramic core to the outdoors. As this air passes through, the ceramic material absorbs a large share of the heat (and some moisture).
• Energy storage: The ceramic core temporarily stores this heat energy, effectively becoming warm itself while the exhaust air leaves the building cooler than it entered the core.
• Supply phase: After a preset time, the fan reverses direction. Now, cooler outdoor air is drawn in through the same ceramic core. As it passes, the core releases stored heat (and some moisture) into this incoming air.
• Delivery to the room: The resulting supply air arrives in the room closer to the indoor temperature than the raw outdoor air, reducing the load on heating or cooling equipment and helping occupants feel more comfortable.

Because the ceramic core can be highly efficient at transferring heat, the manufacturer lists **energy recovery efficiencies up to about 88%** under the right operating conditions. In practical terms, that means much of the energy used to heat or cool the room is retained rather than lost with the exhaust air.

Ceramic core with antibacterial properties

The SV130’s ceramic energy accumulator is described as having **antibacterial properties**, and the unit includes filters that capture dust and other airborne particles. While this does not turn the device into a dedicated air purifier, it adds a layer of hygiene and helps limit the transfer of particulate matter between indoors and outdoors.

As air flows through the core and filters, some microbes and contaminants are either trapped or exposed to conditions that are less favorable for their survival. Homeowners should still rely on separate filtration solutions if they need higher-level particle removal (for example, HEPA filtration for sensitive occupants), but the SV130’s built-in components do contribute positively to overall indoor air quality.

No-defrost requirement in cold weather

Many larger ERVs and HRVs require a **defrost cycle** in cold climates to prevent ice from forming in the heat exchanger when warm, moist indoor air meets very cold outdoor temperatures. The Cyclone SV130 is specifically described as **not requiring a defrost cycle**. That simplifies controls and avoids the temporary reduction in ventilation that defrost modes can create on some systems.

The ceramic core’s design, along with the intermittent reversing of airflow, helps manage condensation and temperature differences in a way that minimizes freeze-up risk within its intended operating range. Installers should still follow manufacturer guidance on climate suitability and installation details to ensure reliable winter performance.

3. Performance and Efficiency: Noise, Energy Use, and Ventilation Impact

For a single-room ERV like the Cyclone SV130, three performance aspects usually matter most to homeowners and professionals: **how quiet it is, how much energy it uses, and how effectively it improves indoor air quality**. The SV130 is engineered with these factors in mind, and the specifications help set expectations for real-world performance.

Noise levels: as low as 0.2 sones

Noise can be a major concern for ventilation equipment, especially in bedrooms and quiet offices. The Cyclone SV130 is rated with **sound levels as low as 0.2 sones** at its lowest fan settings. For context, 1 sone is roughly comparable to the sound of a quiet refrigerator. At 0.2 sones, the unit is designed to be barely noticeable in most environments when running on low.

At higher airflow settings, sound output will naturally increase, but the overall design emphasizes **whisper-quiet operation**. This makes continuous 24/7 operation more realistic without disturbing sleep or concentration. For projects where occupants are especially sensitive to noise, it may still be worth locating the unit away from headboards or workstations, but the specifications are promising for sound-sensitive spaces.

Energy efficiency and power consumption

The SV130 is described as having **very low power consumption**, which is typical of small, high-efficiency ERVs using modern fan motors. When combined with **up to 88% energy recovery efficiency**, the result is a device that can run continuously without meaningfully increasing utility bills in most scenarios.

Instead of simply exhausting warm or cool air directly outdoors, the unit recovers the majority of that energy and transfers it to the incoming air stream. That means **less additional heat is needed from a furnace or boiler in winter and less additional cooling is needed from an air conditioner or heat pump in summer** compared with exhaust-only ventilation or relying on open windows.

Ventilation rate and indoor air quality

While exact airflow values depend on fan speed and local conditions, the SV130 is sized for **single rooms up to about 500 square feet**, which typically require modest but steady ventilation rates. For a bedroom or home office with one or two occupants, continuous operation can help control carbon dioxide buildup, odors, and moisture, all of which are common complaints in airtight spaces.

The combination of **balanced airflow, energy recovery, and filtration** means the SV130 can contribute to a more stable indoor environment with fewer stuffy periods or large swings in humidity. However, it should be understood as a **ventilation and energy recovery device**, not a dedicated dehumidifier or air purifier. In very humid climates or in spaces with significant pollutant sources, additional equipment may still be appropriate.

Humidity and condensation management

Energy recovery ventilators can transfer a portion of humidity along with heat, which helps moderate indoor moisture levels. In winter, the SV130 can help **reduce condensation on windows** by exchanging humid indoor air with drier outdoor air while still retaining most of the heat. In shoulder seasons or mild, humid conditions, it can help limit musty odors and excessive humidity in tightly sealed rooms.

That said, the unit is not intended as a stand-alone solution for serious moisture problems such as wet basements or large bathrooms without other ventilation. It should be viewed as **one tool in a broader moisture-control strategy** that might also include exhaust fans, building envelope improvements, and dehumidifiers where needed.

4. Installation and Maintenance

From an installation standpoint, the Cyclone SV130 is designed to be **simpler than a traditional ducted ERV**, but it still requires careful planning, appropriate tools, and adherence to electrical and building codes. Understanding the basic installation steps, wall requirements, and ongoing maintenance needs helps determine whether this is a suitable project for a DIY-minded homeowner or better handled by a professional.

Through-the-wall installation

The SV130 is a **through-the-wall unit**. That means the installer cuts a circular or rectangular opening through an exterior wall, inserts the ventilation tube and core assembly, and then seals and mounts the indoor and outdoor covers. Because it is ductless, there is no need to route flex duct or sheet metal through ceilings or chases, which greatly reduces installation complexity in many retrofit situations.

However, certain conditions can make the work more challenging:

• Thicker walls may require extension pieces or special sleeves to ensure a proper fit and airtight seal.
• Masonry or concrete walls need specialized tools such as core drills and may take significantly more labor than standard wood-framed walls with siding.
• The unit should be installed with proper slope and weather protection to shed rain and prevent water ingress.

For many wood-frame retrofits, a qualified installer can often complete the job in a few hours, particularly if interior finishes are straightforward. In solid masonry buildings or where access is restricted, the project may require more planning and higher labor costs.

Electrical requirements (120V power)

The Cyclone SV130 runs on **standard 120-volt power**, which is common in North American residential and light-commercial settings. Depending on local code and manufacturer instructions, the unit may be hard-wired to a dedicated circuit or plugged into a nearby receptacle. In either case, electrical work should comply with applicable regulations, and in many jurisdictions it must be performed or at least inspected by a licensed electrician.

Controls are typically built into the unit or provided via a wall switch or small controller. Some configurations allow users to select fan speed or mode, set timers, or coordinate multiple units for balanced ventilation across several rooms, although each SV130 still serves its own penetration and core.

Placement and airflow considerations

Proper **placement** is important for the SV130 to perform effectively. Ideally, the unit should be located on an exterior wall where it can draw in relatively clean outdoor air and distribute supply air evenly within the room. Installers often avoid placing it directly behind large furniture or in tight corners where air circulation is restricted.

For bedrooms, many installers mount the unit away from the head of the bed to minimize any perception of airflow or fan noise during sleep, even though the rated sound levels are low. In offices or small commercial rooms, positioning the unit where air can mix with the room volume rather than blowing directly onto occupants can increase comfort.

Maintenance: filters and core cleaning

Like all ventilation equipment, the Cyclone SV130 requires **periodic maintenance** to sustain performance and cleanliness. The main tasks usually include:

• Inspecting and cleaning or replacing the intake and exhaust filters on a schedule recommended by the manufacturer, often every few months depending on dust levels.
• Occasionally checking the ceramic core for dust buildup and gently cleaning it according to manufacturer instructions if needed.
• Visually confirming that exterior louvers or hoods remain clear of debris, insect nests, or snow accumulation.

These tasks are generally straightforward and can often be handled by homeowners or building staff after a brief orientation. Keeping up with maintenance helps ensure the unit retains its rated efficiency, airflow, and hygienic benefits over time.

5. Pros and Cons of the Cyclone SV130 Ductless ERV

Every ventilation strategy involves trade-offs among cost, complexity, energy use, and coverage. Below is a structured look at the strengths of the Cyclone SV130 and the limitations that should be considered during planning and product selection.

Key advantages

• High energy recovery efficiency: With up to about 88% heat recovery under appropriate conditions, the SV130 can significantly reduce energy losses compared with simple exhaust fans or window ventilation.
• Extremely low power consumption: Efficient fan motors and the single-room design mean operating costs are typically modest, enabling continuous ventilation without a large energy penalty.
• Balanced fresh air without extra heating/cooling cost: Because energy from outgoing air is transferred to incoming air, indoor temperature swings are reduced and existing HVAC equipment does not have to work as hard to condition replacement air.
• Indoor air quality support: By continuously exchanging air with the outdoors and providing filtration and an antibacterial ceramic core, the unit can help reduce odors, dilute indoor pollutants, and manage allergens in the served room.
• Whisper-quiet operation: Sound levels as low as 0.2 sones on low speed support use in bedrooms, hotel rooms, and other sound-sensitive spaces without noticeable fan noise for many occupants.
• Humidity management assistance: As an energy recovery ventilator, the SV130 can transfer some moisture as well as heat, helping maintain more stable humidity levels and reduce condensation risk when used as part of an overall moisture-control strategy.
• Straightforward installation compared with ducted systems: Through-the-wall design and 120V power make the unit appealing for retrofits, renovations, and targeted upgrades where adding ducts would be impractical or too costly.

Potential drawbacks and limitations

• Single-room coverage: Each SV130 is designed for approximately one room up to about 500 square feet. Larger homes or multi-room apartments will need multiple units or a separate whole-home ventilation solution.
• Placement sensitivity: To achieve good mixing and comfort, the unit needs thoughtful placement on an exterior wall with minimal obstructions. Poor placement can limit its effectiveness or make occupants feel drafts.
• Challenging walls: Through-the-wall installation is relatively straightforward in typical wood-framed walls, but it can be more complex and costly in thick masonry, stone, or concrete walls that require specialized tools and more labor.
• Not a full whole-home system: Even with multiple units, a ductless single-room approach may not offer the same level of integrated control, distribution, or centralized filtration as a larger ducted ERV system connected to the home’s main ductwork.
• Limited air cleaning compared with dedicated filters: The built-in antibacterial core and filters are beneficial, but they do not substitute for higher-grade filtration or air cleaning where that is required for health or comfort reasons.

These trade-offs are typical for ductless single-room ERVs and are not specific flaws of the SV130 design. Understanding them helps ensure the unit is deployed in scenarios where its strengths are most valuable and its limitations are not problematic.

6. Ideal Use Cases for the Cyclone SV130

The Cyclone SV130 fits best where **targeted ventilation** is needed for a specific room and a full ducted system is not practical or cost-effective. Below are scenarios where the product tends to align well with project goals, followed by cases where other approaches may serve better.

Where the SV130 is a strong match

• Tight bedrooms in newer homes: Modern, well-insulated houses often have limited natural air leakage. Bedrooms with closed doors can become stuffy overnight. A dedicated single-room ERV offers fresh air and humidity moderation without adding noticeable noise.
• Small apartments or studios: In compact units under about 500 square feet, especially without central ventilation, the SV130 can serve as the main continuous ventilation device, complementing kitchen and bathroom fans.
• Home offices and dens: As more people work remotely, indoor air quality in small offices has become a priority. The SV130 provides steady fresh air to support focus and comfort without major renovation work.
• Cottages, cabins, and seasonal properties: Buildings that sit closed for long periods can develop musty odors and high humidity. A ductless ERV can help maintain baseline ventilation and comfort when the property is occupied, especially where ducted solutions are not feasible.
• Hotel rooms, dorms, and small commercial offices: For spaces with individual occupancy and varying schedules, single-room units allow targeted control and can retrofit older buildings where central ventilation is limited.

In these cases, the combination of **quiet performance, energy recovery, and straight-through installation** can deliver meaningful benefits with relatively modest disruption to the building envelope compared with installing larger ducted systems.

When another solution may be better

• Large multi-room homes: For houses with multiple bedrooms, large living areas, and complex layouts, a central ERV or HRV connected to the ductwork usually provides more uniform coverage and centralized control.
• Spaces with no accessible exterior wall: Rooms located in the interior of a building may not have a direct path for a through-the-wall unit, making ducted or ceiling-mounted solutions more practical.
• Rooms with extreme moisture loads: Large bathrooms, spas, or pool rooms with very high humidity may require strong exhaust fans and dedicated dehumidification; a single-room ERV alone is usually not sufficient.
• Projects needing advanced air filtration: Where occupants require HEPA-level or specialized filtration, it may be more effective to use a system designed around high-performance filters or separate air cleaning equipment in addition to or instead of a single-room ERV.

Recognizing these boundaries helps homeowners, builders, and HVAC professionals match the SV130 to the right room types and building conditions rather than stretching it beyond its intended role.

7. Final Verdict: Who Should Consider the Cyclone SV130?

Overall, the Cyclone SV130 Ductless Single Room High-Efficiency Energy Recovery Ventilator offers a **technically sound and focused solution** for improving ventilation in individual rooms where running ductwork would be impractical or too expensive. Its combination of high energy recovery efficiency, very low noise levels, and simple through-the-wall installation positions it well for modern, airtight spaces that otherwise rely on intermittent exhaust fans or window opening.

The unit is best suited for homeowners, builders, and HVAC professionals working on **rooms up to about 500 square feet** that need continuous fresh air and humidity moderation, such as bedrooms, compact apartments, home offices, cottages, and hotel rooms. In these applications, the SV130 can meaningfully enhance indoor air quality without a large increase in energy use or a noticeable increase in background noise.

At the same time, it is important to recognize that the SV130 is a **single-room device**, not a replacement for comprehensive whole-home ventilation. It requires an exterior wall opening, thoughtful placement for effective airflow, and regular maintenance of its filters and ceramic core. Thick masonry walls or complex building layouts may make installation more difficult or tilt the decision toward other solutions.

For those specific rooms and projects where its strengths align with project needs, the Cyclone SV130 stands out as a **quiet, energy-conscious, and relatively straightforward way to add balanced ventilation**. Evaluating the building’s overall ventilation strategy, consulting local codes, and comparing options with a qualified HVAC professional can help confirm whether this unit is the right fit for a given space.
