Outdoor BBQ Range Hood Guide for Vented Installations

Key Summary: Outdoor BBQ range hoods are a must-have for any covered grilling area or outdoor kitchen. These ducted ventilation systems remove smoke, grease, and heat, keeping your patio kitchen safe and comfortable. In this guide, we focus on vented (ducted) outdoor range hoods – explaining why they’re essential, how to choose the right size (CFM & dimensions) based on your grill’s BTUs, key features (materials, filters, motors, lighting) to look for, installation best practices, and maintenance tips for durability in all climates.

TL;DR:

• Yes, you need a vent hood for covered outdoor grills. A ducted BBQ hood pulls smoke, grease, and fumes out of your patio or pergola area – preventing smoke buildup, greasy stains, and fire hazards under a roof. It’s often required by code for safety and protects your outdoor kitchen investment.
• Go with a high-CFM, properly sized hood. Outdoor grills produce intense heat and smoke, so choose a powerful hood (minimum ~1200 CFM). Aim for 100 CFM per 10,000 BTUs of your grill’s output as a baseline. Make sure the hood is wider and deeper than your grill (3–6 inches overlap on each side) for maximum smoke capture. Mount it about 36″ above the grill for optimal performance.
• Choose durable outdoor-rated features. Look for 304 stainless steel construction (or even 316 for coastal areas) to resist rust and weather. Baffle filters are a must for grease capture (and are easy to clean). Opt for hoods with strong motors (some use dual fans for 2000+ CFM), multi-speed controls (preferably weather-sealed knobs), and bright LED lighting for nighttime grilling.
• Plan the ductwork and installation carefully. Use the recommended duct diameter (often 8–10″) and keep runs short and straight for best airflow. Vent to the outdoors with a roof or wall cap that has a damper to keep rain and pests out. Ensure you have proper support to mount the hood (they’re heavy) and a safe electrical hookup (GFCI outlet or hardwired by a pro). Consider noise – high CFM blowers can be loud, so you might use an external blower or insulated ducting to reduce noise if needed.
• Maintain your outdoor hood for longevity. Clean the stainless steel surfaces and wash or dishwasher the baffle filters regularly to remove grease. Check the ducts and vent cap seasonally for grease buildup or blockages. In harsh climates (snow, freezing temps, or salty sea air), take extra steps: cover the hood or grill area when not in use, and wipe down the hood frequently to prevent corrosion. Quality outdoor hoods are built to handle the elements, but a little care goes a long way to ensure safe and effective operation for years.

What Is an Outdoor BBQ Range Hood (and Why You Need One)

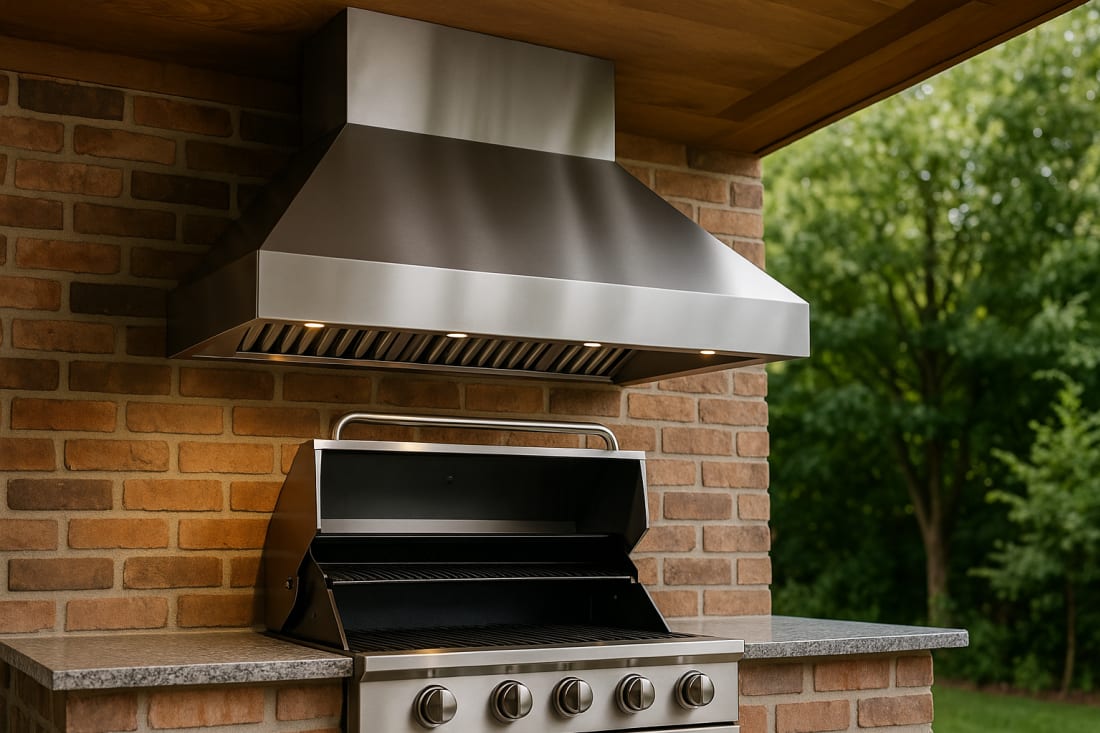

A stainless steel outdoor range hood mounted above a built-in BBQ grill in a covered patio kitchen. Vented BBQ hoods capture smoke and odors, keeping your outdoor cooking area clean and enjoyable.

An outdoor BBQ range hood is a ventilation hood designed to mount above your grill or cooktop in an outdoor kitchen, sucking up smoke, grease, and heat and venting them safely outside. In essence, it works just like an indoor range hood but is built specifically for outdoor conditions and heavier grilling byproducts. These hoods use powerful fans (blower motors) to capture the fumes directly over your grill and push them out through ductwork to the outdoors, instead of letting smoke billow around your patio or under your porch roof.

If you have any kind of overhead cover above your grill – whether it’s a fully enclosed patio roof, a pergola, gazebo, or even a partial awning – an outdoor vent hood is essential for safety and comfort. Grilling produces a lot of smoke, grease particles, and hot gases. Without a vent hood, all that smoke has nowhere to go but linger under your covered area. This can lead to smoke accumulating (making it hard to breathe or see clearly while cooking) and grease vapors clinging to walls, ceiling, and appliances. Over time, you might notice yellowish greasy stains on your soffits or patio ceiling, foul odors stuck to your furniture, or even corrosion on metals. The grime from grill smoke can discolor paint and stainless steel, gunk up your outdoor kitchen cabinets, and even damage your grill’s burners and igniters if it recirculates around. Worse, heat and grease buildup pose a fire risk – a concentrated pocket of smoke and grease under a roof could ignite or cause flare-ups that endanger your home.

A ducted outdoor range hood eliminates these concerns by actively pulling the smoke and grease up and away. By venting smoke outside, it keeps your covered BBQ area clear of smoke and haze, which means you and your guests won’t be coughing or squinting when grilling burgers on game day. It also traps grease in filters before it can settle on surfaces, helping to protect your outdoor kitchen structures and finishes from grime and damage. In many locales, building codes require a proper vent hood if you’re installing a grill under a roof or even a pergola – it’s considered a critical safety measure, much like indoor kitchen ventilation.

Note: This guide covers vented (ducted) installations only, not ductless range hoods. Ductless outdoor hoods are generally not recommended because they simply recirculate air through a filter back into your patio. In an open outdoor environment, a recirculating hood can’t effectively remove smoke or heat – you’d essentially be blowing the smoke around rather than truly getting rid of it. For any permanent outdoor kitchen, a ducted hood venting to the outside is strongly preferred to actually solve the smoke problem rather than just filtering some grease and redistributing the air.

In short, an outdoor BBQ range hood is critical for any covered outdoor cooking space. It keeps the area smoke-free and comfortable, protects your property from greasy residue and fire hazards, and makes your grilling experience much more enjoyable (and safe). If you’ve invested in a beautiful outdoor kitchen or BBQ island, adding a vent hood will ensure that investment stays clean and functional for years to come.

Sizing Your Outdoor Range Hood: CFM and Dimensions

Choosing the right size outdoor vent hood is vital to getting good performance. A hood that’s too small or underpowered won’t catch all the smoke, while one that’s appropriately sized will efficiently capture and vent away the fumes. When we talk about sizing, there are two main factors to consider: blower power (measured in CFM) and the physical dimensions of the hood (width and depth relative to your grill, plus mounting height). Let’s break down how to size your BBQ range hood correctly for your setup.

CFM Requirements Based on Grill BTUs

CFM stands for Cubic Feet per Minute – essentially how much air the hood can move (ventilate) each minute. The higher the CFM, the more smoke and hot air the hood can suck up and expel. Outdoor grills typically produce far more heat and smoke than an indoor stove, so higher CFM is needed for outdoor hoods than what you might use in a kitchen. As a rule of thumb, plan for about 1 CFM of airflow for every 100 BTUs of your grill’s maximum output.

For example, if your built-in gas grill is rated at 80,000 BTUs total, you’d want a hood that provides at least ~800 CFM (80,000 BTU ÷ 100) as a baseline minimum. But keep in mind that outdoor cooking has additional factors – wind, open air, and no walls to contain the smoke – which dilute the smoke and make it harder for the hood to capture. Because of this, experts recommend that outdoor vent hoods should have a minimum of 1200 CFM, regardless of smaller BTU calculations. In practice, many outdoor hoods come with powerful blowers in the 1200 to 2000+ CFM range, often with multiple fan motors to achieve those figures.

Sizing tip: It’s almost always better to err on the side of more power (higher CFM) for an outdoor hood. You might not run it on max speed all the time, but having that extra capacity means when you’re searing steaks on high or getting flare-ups, your vent hood can handle the surge of smoke. In the open air, smoke isn’t as concentrated as indoors, so a weaker hood might struggle to capture it. High CFM = better smoke capture and faster clear-out, which means a cleaner, safer outdoor kitchen.

Let’s say you have a high-end grill that outputs 90,000 BTUs – using our rule, that’s ~900 CFM minimum needed. But since 900 CFM is below the recommended outdoor minimum, you’d likely choose a unit around 1200 CFM or more. Many popular outdoor hoods for grills 36 inches and larger offer 1200 CFM (single motor) or around 2000–2300 CFM (dual motor) designs, to accommodate even the biggest built-in grills and smokers. If your outdoor kitchen has multiple appliances under one hood (e.g., a grill + side burner combination), be sure to add their BTUs together when calculating needed CFM.

One more consideration: mounting height and environment. If your hood will be mounted a bit higher than normal (we’ll discuss height soon, but say above 42″ from the grill), or if it’s an island hood exposed on all sides, the smoke has more room to disperse before reaching the hood. In those cases, you may want to go with even more CFM or a larger hood to ensure coverage. The good news is most quality outdoor hoods come with variable speed settings, so you can crank it to high when you need serious ventilation and turn it to a quieter low setting when doing lighter grilling.

Hood Width, Depth, and Mounting Height

Besides raw power, the physical size of the hood is crucial for effective performance. You want the hood’s capture area to fully cover your grill’s cooking surface (and then some). Outdoor vent hoods should ideally be larger than the grill they serve – this means both wider and deeper.

• Width: For proper coverage, choose a hood that extends past the left and right edges of your grill. A common recommendation is at least 3 inches wider on each side of the grill. Some experts even suggest up to 6 inches on each side for extra capture buffer. In other words, if you have a 30-inch wide grill, look for at least a 36-inch wide hood. If you have a 42″ grill, a 48″ or 54″ hood gives better results. The extra overhang helps catch smoke that might billow out the sides of the grill, especially important if wind or cross-breezes are present. Remember, when it comes to outdoor hoods, bigger is usually better in terms of coverage – a wider hood has a larger intake area to funnel smoke and grease up into the vents.
• Depth: Depth (front-to-back measurement) is just as important, particularly for grills with hoods/lids that can redirect smoke forward. Ideally, the hood should be at least as deep as the grilling surface of your BBQ. Many outdoor grills are 24″ to 30″ deep, and when the grill lid is open, the top of the hood might sit a few inches forward of the back edge. To ensure smoke doesn’t escape out front, outdoor BBQ hoods often come extra-deep – 28″, 30″, even 32″ deep canopies are common on premium models. This helps capture rising smoke even if the open grill lid pushes it forward away from the wall. If your grill is against a wall, the depth plus the back-wall helps funnel smoke into the hood. If it’s an island (free-standing) grill station, depth is even more crucial since there’s no back wall – you might opt for a hood with a flared design or larger depth to create a “smoke chamber” effect. Bottom line: don’t skimp on depth; a too-shallow hood will let smoke escape around the front.
• Mounting Height: The height at which you install the hood above the grill affects both safety and performance. Too low and you risk the hood being damaged by heat or getting in your way; too high and it won’t effectively capture smoke. For outdoor hoods, the sweet spot is typically a bit higher than indoor kitchen hoods because of the intense heat of a grill. Aim to mount your outdoor range hood about 36″ above the cooking surface, with an absolute maximum of ~42″ high. At 36 inches, the hood is close enough to gather smoke well, but high enough to clear the grill lid and give you headroom as you cook. Many manufacturers specify a range (for example, “install between 30″ and 42″ above grill”). For most covered patios, this means the hood will sit at roughly 7 to 8 feet above the floor, which works with standard ceiling heights. It’s important to follow your hood manufacturer’s guidelines if they differ, but never go higher than 42″ or you’ll start losing a lot of capture efficiency – smoke will drift away before the hood can grab it.

Why not mount it lower for even better capture? You might think closer is better, but grills can produce a lot of heat and even flare-ups. Mounting too low (like under 30″) could expose the hood to excessive heat, potentially discoloring it or damaging components. It could also interfere when you open a large grill lid. The ~36″ recommendation is a balance: it’s high enough to protect the hood and give space, but low enough to capture smoke and grease effectively. Within that 36–42″ range, lower will capture slightly better, and higher gives a bit more open feel – but try not to exceed the upper end.

Also consider the structure: ensure your mounting height works with your pergola or roof design. Many outdoor hoods come with chimney extensions or have options for tall ceilings. If your ceiling is very high (say 10+ feet), you might end up hanging the hood from a drop-down box or soffit to achieve the correct height above the grill.

Summary for sizing: pick a hood that’s larger than your grill (both width and depth), and install it at roughly 36″ above the grill surface (within a 30–42″ window per specs). And get a powerful blower (high CFM) to handle the job. A correctly sized hood will blanket your grill in ventilation, so even when you’re doing a smoke-heavy cook like searing steaks or slow-smoking ribs, the fumes get whisked away almost immediately.

Key Features to Look for in an Outdoor BBQ Hood

Not all range hoods are created equal – and this is especially true for outdoor models. Outdoor BBQ hoods need to be tougher, more powerful, and more weather-resistant than standard indoor kitchen hoods. When shopping for a vented outdoor grill hood, pay attention to the build quality and specific features that will ensure it stands up to the elements and heavy-duty use. Here are the key features and components to consider:

Heavy-Duty Stainless Steel Construction

Material matters a lot for outdoor hoods, and stainless steel is the gold standard. Virtually all good outdoor BBQ hoods are made of stainless steel, but the grade and thickness can vary. Look for hoods made from 304 stainless steel (also called 18/8 stainless) or higher. 304-grade stainless steel is highly rust-resistant and can withstand rain, humidity, and heat without corroding. It’s the same grade often used in outdoor grills and commercial kitchen equipment. Some ultra-premium models or ones for coastal areas use 316 stainless steel, which has molybdenum added for even better resistance to salt air and chlorine (think near ocean spray or pools). If you live near the coast or plan to expose the hood to saltwater conditions, 316 SS can be a worthy upgrade; otherwise 304 is usually more than sufficient to prevent rust.

Also check the steel thickness – this is sometimes given in gauge or millimeters. Lower gauge numbers mean thicker metal (e.g. 18-gauge or 16-gauge steel is thicker/stronger than 22-gauge). High-quality outdoor hoods often use around 16 to 19-gauge steel, roughly equivalent to 1 mm thick or more. A sturdy, thicker hood will hold up better to heat and won’t warp; it also helps reduce vibration noise from the blower. The hood’s finish should be a durable brushed or polished surface that’s easy to wipe clean and isn’t prone to discoloration.

Because your hood will be outdoors, also look at how the seams and joints are built. Are they welded and polished (which is ideal, no gaps for grease or moisture) or just riveted? Quality brands will fully enclose and seal the hood’s body so that grease and rainwater don’t seep into crevices. Any openings (like light fixtures or control panels) should be well-sealed too.

In short, choose a hood that is marketed as “outdoor-approved” or “outdoor-rated,” which implies it uses weather-resistant materials and coatings. Indoor-only hoods might use thinner steel or even painted steel/wood, which would rust or degrade quickly outside. You want something that’s all stainless, built to take some abuse, and ideally with a long warranty (many outdoor hood manufacturers offer 3-5 years warranty on parts, indicating confidence in their build quality).

Baffle Filters for Grease & Easy Cleaning

Grease filtration is a critical function of any range hood, and especially for a grill where you’ll have lots of grease vapor and even the occasional flare-up. Outdoor BBQ hoods should have stainless steel baffle filters, not the mesh filters you sometimes see in cheap indoor hoods. Baffle filters are the slatted metal filters (they look like a series of curved or folded metal channels). They force the air to rapidly change direction, causing grease droplets to condense and drain into a collection tray, while the smoke passes through.

Why baffle filters? They are far more effective and safe for high-heat, high-grease cooking. Mesh filters can clog up quickly with sticky grease and are harder to clean, and if they get saturated, grease can drip or even ignite. Baffles, on the other hand, are the professional standard – they handle heavy grease well and are usually dishwasher-safe. You can simply pop them out and slide them into the dishwasher or soak them in a degreaser solution to clean. This is a huge plus because outdoor grills can generate a lot of grease; easy-to-clean filters mean you’ll actually keep up with maintenance (more on that later).

Make sure the hood also has a grease trap/drip tray. Most baffle filter systems will drain excess grease into a removable trough or cup at the bottom of the hood. You’ll want to empty and clean that periodically. It’s much easier to empty a grease tray than to scrub burnt-on grease off your stucco later – another reason a hood is so valuable!

Another feature to look for: flame arrestor ability. Good baffle filters also serve as a barrier to open flames. In the event of a flare-up on the grill, the baffles can help prevent flames from getting past the hood into the ductwork. This is one reason mesh filters (which can drip grease and potentially catch fire) are not recommended outdoors – baffles are sturdier and safer for grilling scenarios.

In summary, ensure your outdoor hood has stainless steel baffle filters and a grease capture system. They’ll make cleaning a breeze and keep your outdoor kitchen safer from grease fires and mess.

High-Power Blowers (Internal or External)

We touched on CFM ratings already, but in terms of features you’ll want to consider the blower type in your outdoor hood. Outdoor range hoods achieve their high airflow in different ways:

• Some use one high-power internal blower (mounted in the hood canopy itself) that can push around 1000-1200 CFM.
• Others use dual internal blowers, essentially two fans working in tandem, to reach 1500-2300+ CFM.
• A few setups might use an external or remote blower – a fan unit located either inline in the duct or on the roof – to pull air more quietly.

Most ready-to-install outdoor hood units you’ll find (especially in the consumer market) will come with built-in internal blowers. Dual motors are common for the larger models. For instance, a 42″ or 48″ wide outdoor hood might have two motors side by side, each pulling ~1000–1200 CFM, combining for ~2000+ CFM total. The advantage of dual motors (besides higher CFM) is that you can often run just one at low speed for quieter operation during light cooking, or both on high when you need maximum ventilation.

If noise is a major concern and you have the ability to do a more custom install, consider a hood that supports a remote blower. That way, the fan noise is moved further away (like to an attic space or roof mount). However, this is less common in outdoor kitchens unless you’re doing a very high-end custom design, since you’d need a weatherproof remote blower and possibly more complex installation. The majority of outdoor hoods are designed to use internal blowers that are optimized for outdoor use – they might have more robust motors or weather-sealed casing, etc.

When evaluating the blower, also check the duct size it requires – a high-CFM fan will need a wide duct (8″ or 10″ diameter typically). Using the correct duct size is crucial to actually achieve the airflow (more on that in installation). Many quality outdoor hoods will explicitly say something like “1200 CFM with 10-inch duct”. That large duct ensures the high volume of air can pass through with less resistance. It’s a good sign of a serious hood if it uses a larger duct; smaller (6″ or 7″) ducts usually indicate lower airflow capability suitable for indoor ranges, not pro-style grills.

Lastly, think about speed controls. Almost all outdoor hoods will offer multiple speeds (usually 3 or 4-speed settings). This is important: you might not always need or want to run the blower on max (full turbo mode can be noisy and overkill for, say, keeping a few hot dogs warm on the griddle). Being able to throttle the fan down to a quieter low or medium for light duty, and ramp up to high when searing or when smoke suddenly billows, is ideal. Check that the controls (be it knobs or electronic buttons) offer this flexibility. We’ll discuss controls next – which ties into the user experience of the blower.

Key takeaway: choose an outdoor hood with a strong blower system appropriate for your grill size – usually meaning one or two beefy internal blowers giving you 1000+ CFM each. This will ensure you have the ventilation muscle when you need it. If you see an outdoor hood that only offers, say, 600 CFM, it’s probably not up to the task unless you have a very small grill (or it’s mis-classified as outdoor when it’s really for an indoor bar or something).

Weatherproof Design: Controls, Lights, and Components

One big difference between indoor and outdoor hoods is how they are built to handle weather and the outdoors. Even if your outdoor kitchen is covered, it’s not as controlled an environment as inside your home – there’s moisture, grease, maybe some temperature extremes, and possibly even some wind-driven rain at times. You want a hood that won’t falter when exposed to these conditions. Here’s what to look at:

• Controls: Many outdoor hoods feature mechanical switches or knobs rather than touchpad controls. This is because electronic touch controls can be more vulnerable to moisture and temperature swings. Sturdy mechanical controls (like stainless steel rotary knobs or rocker switches) tend to be more reliable outdoors and are often sealed against water intrusion. For example, some high-end outdoor hoods have sealed knob controls that won’t let water in behind the control panel. This is a great feature if your hood might get hit by the occasional rain spray or if it’s in a humid environment. Even if using electronic controls, make sure they are specifically described as weather-resistant.
• Lighting: Good lighting is essential for grilling at dusk or night. Most outdoor hoods include built-in LED lights or halogen lights. LEDs are preferred nowadays for energy efficiency and longevity. The lights and their wiring should be encased in weatherproof housing. Check that the fixtures are rated for outdoor use (they usually are if the unit is outdoor-rated). Bright, directional lighting will illuminate your grill surface. Bonus if they are dimmable or have dual settings (many hoods offer a high/low light setting, which is nice for setting a mood vs. full brightness for cooking).
• Weather shields and enclosures: Some wall-mounted outdoor hoods have an integrated chimney or flue cover which not only hides the duct but also provides a bit of protection to the duct opening from rain. If your hood is under a fully covered roof, you might not worry, but if it’s under a pergola or semi-exposed, ensure there is some flashing or cover so rain isn’t pouring directly into the hood’s duct when not in use. The vent cap (where the duct terminates outside) should have a rain cap or louvers (we’ll cover that in install).
• Outdoor safety ratings: In technical terms, many appliances have UL or ETL safety certifications. If you’re interested, you can check if the hood has a UL certification for outdoor use specifically. This ensures it has been tested for things like rain, corrosion, etc. Not all manufacturers will list this in consumer info, but typically if they advertise it as outdoor, it’s built to those standards.
• Fan motor quality: If the fan motor is inside the hood, it should be encased or coated to resist rust from any moisture or grease. Some motors might be rubber-sealed or have protective coatings. You probably won’t see this, but reputable brands will design their motors for the conditions (for instance, an outdoor motor might use stainless steel or powder-coated fan blades instead of plain steel).
• Heat tolerance: Outdoor hoods should be able to withstand higher heat spikes than indoor ones, due to proximity to an open flame grill. Check for any info on max temperature or make sure the installation height is sufficient to mitigate this (as discussed). Some pro-grade hoods even have heat sensors or automatic on features (more common indoors though).

To put it simply, ensure every element of the hood is “outdoor tough.” That means rust-proof materials, sealed electronics, and design considerations for rain and heat. An indoor hood used outside might quickly show rust spots, have its buttons fail, or lights short out. Outdoor hoods, by contrast, are built to be out there in the grilling environment year-round. That durability is part of what you’re paying for.

Noise Levels and Remote Blower Options

One feature people sometimes overlook is the noise factor. All that power from the blower can create a good amount of sound (measured in sones). High-CFM hoods will make noise on their top settings – that’s unavoidable physics – but better designs manage noise well at lower speeds and have sound-dampening features. For instance, some outdoor hoods advertise fairly low sone ratings (sone is a unit of loudness) at normal operation, maybe around 4-7 sones at high speed which is not bad for the airflow (for context, 6-7 sones is about the level of a normal conversation).

If noise is a concern for you (maybe you entertain a lot and don’t want a jet engine sound while grilling), look for:

• Dual blowers that you can run one at a time: You might not always need both fans blasting. Some models let you control them in stages.
• Variable speed: The ability to dial in just as much fan as needed can keep sound to a minimum most of the time.
• Anti-vibration mounting: Thick stainless steel and good construction help to prevent rattling noises. Cheaper hoods might rattle when the fan is on high.
• Remote blower capability: As mentioned, moving the blower out of the hood and into the attic or roof can dramatically cut perceived noise in the cooking area. If you are building a high-end outdoor kitchen and noise is a top priority, you could explore a hood insert + remote blower configuration. However, most people find that a quality built-in blower, used at appropriate speeds, is just fine given that outdoors the noise dissipates more than in a closed kitchen.

Manufacturers sometimes provide sone ratings at different speeds, so you can compare. For example, one might say “2.0 sones on low, 7.0 sones on high.” That tells you at low it’s whisper quiet, at high it’s noticeable but not crazy (a vacuum cleaner is about 9-10 sones for comparison). If they don’t list sones, read reviews or specs for clues like “quiet operation” or mention of noise-dampening technology.

Ultimately, since you’re outdoors, noise is usually less of an issue than an indoor kitchen (no walls to amplify sound). But you still want to be able to enjoy conversation around the grill. A well-made outdoor hood shouldn’t roar or whine; it will just whoosh air. If you fire it on max, it’ll be audible, but you typically don’t run max the whole cook.

Additional Features and Nice-to-Haves

A few other features might be worth considering:

• Heat sensors/auto-on: Some advanced models have a heat sensor that will automatically turn on the hood if it senses high heat (like you forgot to turn it on and started grilling). This is a safety feature more common in indoor smart hoods, but a few outdoor units might have it.
• Remote controls: A remote or even Wi-Fi/app control could be handy so you don’t have to reach up if your hood is mounted high. This is not very common yet in outdoor-rated units, but it’s emerging in the market.
• Aesthetics: Last but not least, consider the look. Many outdoor hoods have a classic stainless steel pro style. Some might offer different finishes or custom cladding (for example, you could have a wood enclosure built around a hood insert to match a rustic patio). Just ensure any customization doesn’t interfere with the venting and uses fire-safe materials. There are also island hoods with a more decorative design, etc. As long as the performance and materials are up to par, you can certainly choose a style that complements your outdoor kitchen design.

By focusing on these key features – sturdy stainless construction, baffle filters, powerful blower, weather-resistant electronics, and solid design – you’ll select an outdoor range hood that not only does the job on day one but continues to perform season after season in the demanding outdoor environment.

Installation Tips for Vented Outdoor Range Hoods

Even the best range hood won’t do its job if it’s installed poorly. Installation of an outdoor BBQ hood can be a bit more involved than a typical indoor hood, because of the larger size and ducting through exterior structures. Whether you’re a DIY enthusiast or hiring a contractor, keep these installation considerations in mind to ensure your vented hood operates safely and effectively.

Ductwork: Routing and Vent Caps

Plan your duct run to be as short and straight as possible. The duct is the pipe that carries smoke from the hood to the outside atmosphere. Every foot of duct and every bend it takes will reduce the airflow (CFM) that actually gets out. Outdoor kitchens often have the hood mounted against an exterior wall, which is convenient because you can vent directly out the back through the wall with minimal duct length. If that’s an option, use it – a short horizontal run through the wall to a vent cap outside is ideal.

In other cases, you might need to vent upwards through a ceiling or attic to the roof. This is common if your grill is under a patio roof or in an enclosed gazebo structure. In a vertical vent run, use smooth metal ducting (galvanized or stainless steel) and avoid flex duct. Use the duct diameter the hood calls for (e.g. a 10″ round duct for a 1200+ CFM hood) – do not choke it down to a smaller size just to fit an existing vent, or you will drastically cut performance and potentially create a noise problem from air turbulence. It’s worth framing out a larger chase or cutting a bigger hole if needed to accommodate the proper duct size.

Keep elbows (90° turns) to a minimum. If you must have bends, use gradual ones (45° if possible, or use two 45° to make a gentle sweep) rather than a hard 90° turn. Each turn and long run adds “static pressure” that the blower has to overcome. For instance, a 10-foot straight run of 10″ duct might be fine, but add two sharp elbows and you effectively might cut the flow significantly. The manufacturer’s instructions often detail an equivalent length maximum (like “maximum duct run 40 feet, subtract 5 feet for each 90° elbow,” etc). Follow those to ensure your powerful blower isn’t being strangled by the duct layout.

Vent termination: The end of the duct needs a proper exterior vent cap or louver. If going through the roof, use a dedicated roof vent cap made for range hoods (usually a squared metal cap with a built-in damper flap). If going out a side wall, use a large wall cap with a damper. The damper is a one-way flap that opens when the hood is on (letting smoke out) and then closes when off to prevent backdrafts of outside air, rain, or critters coming in. Make sure the vent cap size matches your duct (they come in 10″, 8″, etc.). It should have a wide mouth and perhaps even a bird/debris screen. Some heavy-duty caps are spring-loaded to close firmly against pests. Install the cap with proper flashing to avoid water leaks, and if on a wall, choose a location away from any soffit vents or windows (you don’t want smoke being sucked back into the attic or house).

Through soffit venting: In some patio covers, you might run the duct up and then out through a soffit. This can be okay, but be cautious – the rising hot air from the grill will carry grease, which can stain the soffit area over time if not expelled cleanly. A wall or roof exit is often better to carry smoke fully away. If a soffit exit is used, treat it like a wall cap and make sure smoke won’t accumulate under an eave.

Duct security: Because outdoor hoods are often larger, ensure the duct is well supported. Use metal strapping or brackets to hold it in place so it doesn’t sag or come loose, especially if you have a long vertical run.

Fire safety: Do not vent the hood into an enclosed attic or crawlspace – always to outdoors. If the duct goes through any combustible material (like a wood ceiling or wall), follow code for clearances – typically a 1″ air gap around single-wall metal duct or use an insulated double-wall duct (Class I or Class II duct) that is rated for close contact. This is particularly important for a roof penetration – double-wall insulated duct can prevent the outer surface from getting too hot against wood framing, and also helps with condensation (warm moist air hitting a cold duct can create condensation – insulation mitigates that).

Makeup air: Technically, very high CFM hoods remove a lot of air, which in a tight house requires makeup air (replacement fresh air) to equalize pressure. In an outdoor kitchen, you usually have plenty of natural air coming in (since it’s not a sealed environment), so makeup air kits are generally not required. If your outdoor kitchen is in a fully enclosed four-season room, then you might need to consider a makeup air inlet like you would for an indoor kitchen with a powerful hood. But in most patio or semi-open setups, the leakage from open sides provides sufficient air.

Mounting and Support

Outdoor BBQ hoods are often heavy and large. Installing one safely means making sure it’s securely anchored to a structure that can handle it. Here are some tips:

• Wall-mounted hoods: These need strong backing in the wall. If you have a masonry wall (brick or stone), use appropriate masonry anchors or bolts into the concrete/block behind the veneer. If wood-frame, make sure you have solid blocking or studs to screw into at the mounting points. It’s not enough to just hit siding or thin sheathing. Ideally, when building the outdoor kitchen, you plan for the hood and put blocking between posts or studs at the correct height. Use all the mounting holes/brackets provided by the manufacturer. A big stainless hood could weigh 50-150 lbs, plus vibration and wind could stress it – so secure installation is key.
• Island (ceiling) hoods: These hang down from above, so you’ll need strong support in the ceiling or pergola. Often island hoods come with a hanging bracket system. You might have four threaded rods that attach to a frame in the ceiling. Ensure those attach to joists or a constructed frame that can bear the load. Again, plan ahead to have anchor points – for example, if you have a wood beam pergola, you might bolt through a beam; if a covered porch, open the ceiling and add cross-members if needed. This is definitely a two-person (or more) job: one to hold or hoist the hood in place, others to secure bolts.
• Clearances: Follow clearance to combustibles requirements. Most outdoor hoods require at least 36″ above the grill (which we have) and also some clearance from back wall cabinets or structures if they are wood. If you built an enclosure for the hood (say a wood decorative cover around a hood insert), the insert manufacturer will specify how much space around it should be non-combustible or insulated. Often, a liner is used – for example, you build a wooden hood cover but line the bottom with a stainless steel liner insert that houses the fans and lights. That liner protects the wood from direct heat and grease.
• Electrical hook-up: Typically, an outdoor hood will be hardwired to a dedicated circuit, or sometimes it can plug into an outlet (depending on the model and local code). Since it’s outdoors, any outlet or wiring must be GFCI protected for safety. If hardwiring, you might have an outdoor-rated junction box mounted near the hood inside the structure. It’s wise to have a cutoff switch or breaker you can shut off when servicing the hood. Always use a licensed electrician if you are not completely comfortable with electrical work – electricity in a wet/outdoor environment must be done right.

During installation, be careful not to damage the hood’s finish. Use padding or have helpers – stainless can scratch if dragged against brick or metal. Also, after installation, remove any protective plastic film (many come with a sticky film to protect during construction – don’t forget to peel it off, or it could melt on!).

Electrical and Ventilation Considerations

We touched on electrical – ensure proper voltage (most are standard 120V in North America; just make sure you meet the amp requirements if it’s a very large dual-motor unit, sometimes they can draw 6-10 amps, so a dedicated 15A circuit is plenty). If the hood has internal lights, those will be wired in as well with the fan. Typically it’s a single connection for both fan and lights, with controls splitting them.

Given that outdoor kitchens are often add-ons, double-check that adding the hood’s electrical load plus maybe your fridge, lights, etc., doesn’t overload an existing circuit. Ideally, run a new circuit for the hood and any other appliances to be safe.

For ventilation effectiveness, after install, do a test run: turn on the hood, then light your grill or even just use a smoke source (like a smoke pellet or something on the grill) to see how well it captures. If you notice smoke spilling out, you might need to adjust something (common issues: hood mounted too high, or crosswind issues if one side is open – sometimes adding side wind deflectors or increasing the hood’s CFM by opening a higher speed can solve that).

If you find the blower is so strong it’s creating negative pressure that sucks ash out of a firepit or something, that would be unusual outdoors but you could then crack open a nearby door or just dial the speed down. Outdoors this is rarely a problem unless in a very semi-enclosed space.

Noise and Vibration Control

As mentioned in features, dealing with noise can also be part of installation:

• If your hood has an option to mount the blower separately (some have an internal blower you can actually position in-line further up the duct), doing so can reduce noise in the cooking area.
• Use ducting that fits snugly and maybe consider an inline damper (if not built into hood) that doesn’t flap noisily.
• Secure all parts so there’s no rattle. After install, if you hear vibration, you might add some rubber washers on mounting screws or adjust the duct hangers.
• Building an insulated soffit box around the duct can also muffle sound if needed (just don’t insulate too close to the motor where it could cause overheating – insulation should be around duct, not the motor housing).

Lastly, be mindful of the hood’s exhaust direction relative to your neighbors or seating areas. A wall cap will blast out smoke and air; if that’s pointing right at your neighbor’s patio or your lounge area, you might want to extend the duct to the roof instead, or at least direct it away from sensitive spots. High velocity air can carry some grease residue, which can stain exterior walls over time near the vent outlet – a good cap placement and perhaps a deflector can minimize that.

Professional installation vs DIY: If you’re handy, you can certainly install a vent hood yourself, especially wall-mounted ones, with an extra set of hands. But don’t hesitate to hire a pro for this, particularly the ductwork and electrical parts, to ensure everything meets code and is done safely. A pro will also know little tricks like how to properly flash a roof penetration or how to level and secure the hood so it doesn’t move.

By taking care during installation – proper ducting, sturdy mounting, safe wiring – you’ll set your outdoor hood up for optimum performance. It’s worth doing right, because that hood will then reliably whisk away the smoke and you can grill with peace of mind that your setup is safe and efficient.

Maintenance and Durability in Canadian & U.S. Climates

One great thing about quality outdoor range hoods is that they’re built to last in tough conditions. However, “weatherproof” doesn’t mean zero maintenance. To keep your BBQ hood performing well (and looking good), you’ll need to do some routine cleaning and occasional care. The maintenance isn’t difficult – mostly a bit of cleaning – but it’s important, especially if you grill often or live in an area with harsh weather (freezing winters, heavy rain, or salty ocean air). Let’s go over how to maintain your outdoor vent hood and ensure its durability in any climate.

Regular Cleaning: Filters and Surfaces

Clean the grease filters frequently. This is the number one maintenance task that will keep your outdoor hood functioning properly. How often depends on usage – for a typical home that grills on weekends, maybe cleaning filters once a month is fine. If you grill every day or do a lot of smoky cooking, you might do it every couple of weeks. The good news: with stainless steel baffle filters, it’s usually as easy as popping them out and putting them in your dishwasher. Most baffle filters are dishwasher-safe (check your manual to be sure). Run them on a heavy cycle with degreasing detergent. Alternatively, you can soak them in a tub of warm, soapy water (add a bit of degreaser or vinegar) and then rinse. Keeping the filters clean ensures optimal airflow; when they get clogged with grease, the blower has to work harder and you lose performance.

Don’t forget to also empty and wipe the grease drip tray if your hood has one. This tray or cup collects the grease that runs off the filters. Slide it out (usually from the front or side of the hood) and dump out any liquids/grease. Wipe it with a paper towel and some kitchen degreaser spray. Neglecting the grease tray could lead to overflow or even rancid grease smell – a 2-minute task to clean it prevents that.

Wipe down the hood’s interior and exterior. After a few grilling sessions, you might notice a film of grease or smoke residue on the underside of the hood and on the outer surfaces. When the hood is cool, use a soft cloth or sponge with a mild detergent or a specialized stainless steel cleaner to wipe all surfaces. On the underside (around the fans and lights), warm soapy water works to cut the grease. For the stainless steel exterior, you can use a stainless steel cleaner/polish to keep it shiny and protected. Always wipe in the direction of the steel’s grain to avoid scratches. Regular cleaning not only keeps it looking sharp but also prevents grease build-up that could drip or even attract pests.

One trick in greasy environments is to apply a tiny bit of mineral oil or stainless steel polish to the exterior after cleaning – this leaves a slight film that can repel fingerprints and make the next cleaning easier. Just don’t apply oil anywhere near the filters or interior where it could get onto cooking areas – keep that for the exterior surfaces only.

Check the fan and inside the duct occasionally. Every 6 months or so (or at least annually), inspect the fan blades inside the hood (you may need to remove filters to see). If you see grease accumulating on the blower wheels, those might need cleaning too (unplug power first!). Some fans can be removed for cleaning; others you might just spray with a degreaser and carefully wipe. Similarly, if you can access the duct (like from the roof end), peek in to see if there’s grease lining it. A little thin film is normal, but if you ever find significant grease pooling in the duct, that’s a sign you need to clean your filters more often (the filters are supposed to catch most of it). If necessary, a professional duct cleaning could be done every few years, but for residential outdoor hoods, it’s usually not as critical as an indoor restaurant hood since your usage is lower.

Seasonal Care for Weather and Climate

Living in Canada or a region with cold winters? Or perhaps in a humid, salty coastal area? These conditions can influence how you maintain your outdoor hood:

• Winter/Freezing weather: If you don’t grill much in winter, you might think the hood just “sits” until spring. But be mindful of a couple of things: moisture can condensate inside the hood or duct during freeze-thaw cycles, and if there’s any grease buildup, that can mix with moisture. One good practice is to do a thorough cleaning of the hood and filters at the end of the heavy-use season (fall), so it doesn’t sit dirty over winter. You can also lightly coat the interior of the hood and baffles with a cooking oil spray after cleaning – this can prevent rust spotting if any part of the stainless is not 100% protected (just remember to clean that off before next cooking). If you’re in an area with wind-blown snow or rain, you might consider covering your grill and hood with a tarp or cover when not in use for extended periods. Many people cover the grill itself; extending that to also cover the hood can keep out snow and debris. Just ensure any cover is removed before use (obvious but important!). Also, turn off power to the hood during the off-season if you’re worried about storms or not using it for months – this isn’t mandatory, but some prefer to flip the circuit breaker off so that the electronics aren’t energized during a lightning storm or such.
• Rainy climates: If your hood can get wet in rain (say it’s in a semi-exposed area), make sure after heavy rain to perhaps check the inside for any water ingress. A properly installed hood with a dampered vent cap should prevent water from coming down the duct, but wind-driven rain can occasionally get in small gaps. Usually it will just evaporate, but if you ever see standing water, wipe it out and investigate sealing. Keep the stainless steel clean, because rain can leave mineral spots – again, a quick wipe with stainless cleaner keeps it looking nice.
• Coastal/salt air: Salt is the enemy of any metal. 304 stainless is “rust-proof” but not absolutely rust-proof – in coastal environments it can still develop some corrosion called “tea staining” if salt is allowed to sit on it. If you live by the ocean or a saltwater pool, commit to cleaning the hood’s exterior more often. Rinse it with fresh water occasionally or wipe it with a damp cloth to remove salt deposits. You might even apply a protective clear coat or car wax to the stainless exterior for an extra barrier (there are products specifically to protect stainless steel appliances in marine environments). Importantly, any rust speckles that do appear should be cleaned and gently polished out early – don’t let corrosion sit and spread. The Range Hood Store notes that 304 stainless steel outdoor hoods are constructed to handle coastal climates, but some care like regular cleaning is wise.
• Snow and ice: Snow itself won’t harm a stainless hood, but be cautious if you ever use the grill/hood in extremely cold conditions. Turning on a hot fan in sub-zero temperatures could cause rapid expansion and maybe condensation inside the duct. It’s generally fine, but if you notice condensation dripping, you might need to insulate the duct. For anyone in very cold climates, insulating the duct run (especially if it goes through an attic) is a good idea to prevent condensation which can drip back or even cause icicles at the vent. Insulated ductwork also helps keep the metal warmer so moisture doesn’t condense as easily when cold outside. This is the same principle as an attic vent for an indoor range – you’d wrap it with insulation.
• Off-season pest prevention: When your grill isn’t in use for long periods, little critters might see your vent duct as a cozy home. Mice, birds, even squirrels have been known to find their way into vent ducts if not protected. Ensure your exterior vent cap has a screen. If it doesn’t, you can add a mesh (just check it often for grease buildup). Some folks will stuff a rag or cover the vent opening in off-season, but you MUST remember to remove it before using the hood again (a big warning sign hanging from the hood control can help you not forget!). There are also magnetic vent cover flaps you can slap on the exterior when not in use. Again, only do this if you have a very good system to remind you to remove it, because running the hood with that still on would be bad news.

Routine check-ups: At least once a year, go through a quick checklist:

• Tighten any loose screws or brackets on the hood.
• Replace light bulbs if any are out (ensure you use the correct type, e.g. outdoor-rated LED bulbs of the right size/wattage).
• Verify the damper in the vent cap moves freely (not stuck open or closed).
• Listen to the fan motor: any unusual squeaking or grinding? If so, it might need lubrication or replacement (most quality motors are permanently lubricated and sealed).
• Look for any discoloration or rust starting – address it with appropriate cleaners or touch-up.

The good news is that high-quality outdoor hoods are designed for low maintenance – they know homeowners won’t want to fuss too much. For example, ZLINE (a popular brand) touts features like dishwasher-safe baffles and sealed parts specifically to reduce maintenance needs. So as long as you do the basic cleaning and take a few climate-related precautions, your hood will stay in great shape.

In Canadian winters or the heat of a Texas summer, a well-built hood can handle it. Just give it a little TLC: keep it clean, protect it from excessive exposure when possible, and it will reward you with reliable performance each time you fire up the grill.

Common Questions about Outdoor Grill Hoods

You might still have some specific questions on your mind. Let’s tackle a few of the most common queries homeowners and contractors have about outdoor range hoods for BBQ areas:

Do I Really Need a Hood Over My Outdoor Grill?

If your grill is under any kind of roof or overhang, the answer is absolutely yes – you need a vent hood. As discussed earlier, without a hood, smoke and grease will accumulate under that covering and cause a host of issues: stinging smoke in your eyes, greasy soot on your ceiling and walls, and even potential long-term damage or fire risk. Many people assume because they’re “outdoors” a hood is optional, but if there’s a ceiling trapping the smoke, it’s essentially like an indoor kitchen at that point (sometimes worse, since grills produce more smoke).

Local building codes often require a proper ventilation hood for any grill under a covered patio or built into an outdoor kitchen structure. It’s both for safety (to vent carbon monoxide and prevent fire hazards) and maintenance (to avoid property damage). Beyond regulations, it’s just a matter of protecting your investment – a beautiful outdoor kitchen can be ruined over time by smoke staining and grease if not vented. Plus, your guests will certainly appreciate not coughing through dinner when you’ve got the grill going.

What if your grill is totally out in the open? In an open-air setting with no overhead cover, a hood is not required (since smoke can rise into the sky freely). In fact, installing one in open sky isn’t practical. However, even in open setups, some people choose to put a gazebo or small roof over the grill for rain protection, etc., at which point, yes, you’d want a hood with that roof. If you’re in a semi-enclosed patio (say three walls and an open front), a hood is strongly recommended because smoke will accumulate against the ceiling and walls.

In summary, if there’s any roof/cover over the grill area, you need a vent hood for a safe and enjoyable grilling experience. It’s a worthwhile addition that you’ll be thankful for every time you grill without choking on smoke or scrubbing grease off the patio ceiling.

How Much CFM Do I Need for an Outdoor BBQ Hood?

You’ll want to size your hood’s power to your grill’s output and the nature of your setup. As mentioned in our sizing section, a handy guideline is 100 CFM per 10,000 BTUs of grill capacity. However, due to the open environment, always ensure the hood provides at least about 1200 CFM even if your math comes out less.

To put it simply:

• Small 2-3 burner built-in grill (maybe 40k-50k BTU) -> look for ~1200 CFM hood (minimum).
• Medium 4-5 burner grill (60k-80k BTU) -> 1200 to 1500 CFM is recommended.
• Large 6+ burner or pro grills (90k-120k BTU and above) -> aim for 1600 to 2000+ CFM.

If you have multiple components under the same hood (like a grill + power burner side by side), add their BTUs together. For example, 70k BTU grill + 30k BTU side burner = 100k BTU, so aim for ~1000 CFM at least, but in practice go for that 1200+ CFM range.

Also factor in the hood type: wall-mounted hoods can be a bit more effective than island hoods at the same CFM, because a wall hood has a back that helps direct smoke into it. Island hoods (hanging in open air) sometimes benefit from higher CFM since smoke can drift more. So for an island application, lean toward the higher end of the CFM range.

Remember that more CFM isn’t just about raw power; it’s about maintaining air quality and comfort. A strong hood will clear out smoke faster, which is especially nice if you do a lot of searing or high-heat grilling that generates bursts of smoke. It also helps with heat removal – grills throw off a lot of heat upward, and a powerful vent hood will suck away some of that hot air, keeping your covered patio a bit cooler.

One caveat: extremely high CFM (like above ~2000) in a very small semi-enclosed area could create a slight vacuum effect, but as noted earlier, usually outdoor settings have plenty of air leakage to compensate. If you notice your hood struggling, it might be an indicator you need to open up some windows/doors (if in an enclosed sunroom type) or it could indicate the duct is too restrictive.

In summary, get as much CFM as is reasonable for your grill size, with 1200 as a recommended minimum for any serious BBQ. Most outdoor hood buyers will be choosing between models in the 1200, 1500, 2000+ CFM categories. Opt for the higher end if you’re unsure or if you have a large grill – you can always run it at lower speed when full power isn’t needed.

Can I Use a Regular Kitchen Range Hood Outside?

No – you should not use an indoor-rated kitchen range hood in an outdoor setting. You’ll want to install a hood specifically designed and certified for outdoor use. There are important differences in construction and performance:

• Materials: Indoor hoods might use thinner steel or even plastics in components, which could rust or crack outdoors. Outdoor hoods use 304 stainless steel exteriors and often stainless internal parts to resist corrosion. An indoor hood could start to rust after just a season in humidity or rain.
• Weather Protection: Indoor units aren’t sealed against moisture. The electronics, motors, and lights could short out if exposed to the dampness and temperature swings outside. Outdoor hoods have things like sealed switches, water-tight light fixtures, and specially coated motors built to handle it.
• Power: Indoor hoods for typical residential kitchens might be 300-600 CFM, which is far too low for an outdoor grill. Even high-end indoor range hoods usually max out around 900-1200 CFM for big gas ranges. Outdoor hoods start at 1000+ CFM and go up from there, as they need the extra airflow to capture smoke in open air.
• Design: Outdoor hoods tend to be larger (width/depth as we discussed) and often include things like deeper grease traps, heavier baffles, etc., anticipating more grease. Many indoor hoods use mesh filters or shallow designs that wouldn’t cope well with an outdoor grill’s output.
• Safety ratings: Using an indoor hood outside might even void insurance or warranties. Outdoor hoods are UL-listed for outdoor use if properly installed. An improvised indoor hood outside could be a fire hazard if not protected properly, and manufacturers definitely won’t warranty a product used outside its intended environment.

In short, while it might be tempting to repurpose a cheaper indoor hood, it’s not built for the job. You’ll save yourself a lot of trouble by investing in a proper outdoor BBQ range hood that’s engineered for that setting. These are appliances where you truly “get what you pay for” – the outdoor models come at a premium, but they’re built to handle sun, rain, grease, and heavy smoke day in and day out.

So, stick with a hood that’s marketed for outdoor kitchens. You’ll get the durable stainless steel build, the high airflow, and the weatherproof assurances you need for a long-lasting installation. Many brands like Victory, ZLINE, etc., make outdoor-specific models that incorporate everything we’ve covered, ensuring you have peace of mind and a functional vent system outside.

(If you have other questions not covered here, feel free to reach out to our team or check out additional resources on Rise. We’re here to help make your outdoor kitchen project a success!)

Featured Outdoor BBQ Range Hoods (Product Picks)

Now that we’ve gone through the essentials of outdoor BBQ range hoods, you might be wondering which specific models stand out. Below, we highlight a couple of top-rated vented outdoor range hoods available through Rise – each exemplifying the features and performance you should look for. These picks are designed for Canadian and U.S. homeowners and contractors who want reliable quality and great value:

• Victory “Twister” 36″ Outdoor BBQ Range Hood (1200 CFM): A popular choice for medium-sized grill stations, this wall-mount stainless steel hood offers 1200 CFM of ventilation power with a single high-capacity motor. It’s built with 19-gauge 304 stainless steel for durability, and comes with dishwasher-safe baffle filters and a grease tray for easy cleaning. The Victory Twister features a simple 4-speed mechanical knob control (protected and hidden for weather safety) and bright LED lights to illuminate your grill. At 36 inches wide, it’s perfect for grills in the 30″ range or smaller, providing that essential smoke removal in a sleek design. (Bonus: Victory hoods are assembled in Canada and include a 5-year parts warranty, reflecting their solid build quality.) See it on Rise →
• Victory “Prestige” 60″ Outdoor BBQ Range Hood (2300 CFM Dual Motor): For large outdoor kitchens or those who demand the absolute best performance, the Prestige 60″ model is a powerhouse. This extra-wide hood boasts 2300 CFM thanks to its dual blower motors, giving it the muscle to handle multiple grills or a grill + side burner setup. Its 1mm thick 304 stainless steel construction and 32″ deep canopy ensure full coverage even when grilling with the lid open. The Prestige line uses industrial-grade baffle filters (with a deep grease trap) and simple rotary switches for fan speeds and lights – easy to operate even with greasy fingers and built to last. Despite its high performance, it’s designed for quiet operation (as low as ~1.5 sones on low) and offers both top or rear venting for flexible installation. This 60″ Victory hood is ideal for oversized grill islands or patio setups where you want maximum coverage; it will keep the air clear even during intense cookouts. See it on Rise →

Rise offers these and other outdoor BBQ range hoods in various sizes (from compact 30-36″ hoods up to massive 60-72″ models) to fit your project. All our featured outdoor hoods are ducted, high-CFM units with premium stainless steel construction and are selected based on quality and performance criteria. When browsing our collection, you’ll find detailed specs, installation guides, and customer reviews to help you choose the right model.

Need help deciding? Feel free to reach out to the Rise team or check our online resources for guidance. We understand that an outdoor range hood is a significant investment, but it’s one that pays off in safety, cleanliness, and enjoyment of your outdoor living space. With the right hood in place, you can grill, sear, and smoke to your heart’s content, all while breathing easy and protecting your outdoor kitchen for the long haul.

(Product Carousel: Explore our Outdoor BBQ Range Hoods collection below to compare features and prices of these and other models.)
