Youtube play iconBuilding an Energy Efficient Home on an Existing Foundation

"The goal in doing this house was to show how one could do a relatively affordable, urban, energy-efficient house on a very tight urban site," Fisher told Rise readers back in 2019. "Cities all over the world have old houses on tight urban sites that need to be redeveloped. I was hoping this house would be an example of what you could do."

Built on the Existing Foundation

The team discussed whether to keep the existing structure, a single-level, one-bedroom, 700-square-foot bungalow. "But, the wood frame of the house was caving in," Fisher recalls. So, the team deconstructed the house with help from an organization that employs former convicts. Concrete, wood, appliances, metal, stucco, and other materials went in separate bins for recycling. Stained-glass windows found new homes. Fisher says that 80% of the former structure was recycled.

They kept, however, the 1911 basement and foundation. "That allowed us to avoid excavation, which would have disturbed the existing oak trees on the site," Fisher says, some of which were upward of 100 years old. Keeping the basement and foundation also reduced the couple's construction costs.

Fisher Residence Bedroom
Fisher Residence Bedroom. Photo Credit: Gaffer Photography

The architects designed the new house to cantilever slightly over the 20-foot-wide-by-32-foot-long foundation, adding 100 square feet to the first level. The extra square footage allowed the architects to include a full, accessible bathroom and a bedroom (with a stacked washer and dryer in a laundry closet) on the 1000-square-foot first level. Fisher and Wielgorecki anticipate that someday they will live solely on the main level, so the architects addressed those aging-in-place concerns. Currently, the lower-level bedroom is the grandchildren's play area.

Fisher Residence Dining
Fisher Residence Dining Room. Photo Credit: Gaffer Photography

The architects also built upward with the home's design due to the foundation's constraints and the tight urban site. As such, the kitchen, dining, and living areas on the first level are open plan and face the backyard (and the couple's former house). The home's spacious double-height volume, with a large window looking into the leafy canopy of a mature oak tree, gives the home an airy feel while bringing in abundant daylight.

Loading...
Fisher Residence Rear
Fisher Residence Rear. Photo Credit: Gaffer Photography

"Because the windows project out, the house feels bigger," Fisher says. "The house is basically a gabled box with windows that are purposefully asymmetrical and arranged to block the neighbors on either side." The asymmetrical gable roof and exterior walls of the home's two-by-six wood frame are packed with closed-cell spray foam insulation. The house is clad in gray corrugated and standing-seam metal panels.

Recommended by Rise

Electricity

Shop a wide variety of electrical products that look after power to your home.

Shop All
Emporia Classic Level 2 48 AMP EV Charger UL Listed
In stock

EV Charger

Emporia Classic Level 2 48 AMP EV Charger UL Listed

$429

View Product
QuickBOLT QB2 with Microflashing Multi Roof Mount Solar Panel Fastener Kit
In stock

Solar System Fasteners

QuickBOLT QB2 with Microflashing Multi Roof Mount Solar Panel Fastener Kit

$256

View Product
Emporia Pro Level 2 48 AMP EV Charger UL Listed
In stock

EV Charger

Emporia Pro Level 2 48 AMP EV Charger UL Listed

$599

View Product
QuickBOLT 2-1/4" EPDM Solar System Conduit Mount w/Screw
In stock

Solar System Fasteners

QuickBOLT 2-1/4" EPDM Solar System Conduit Mount w/Screw

$111

View Product
Emporia Vue 3 Home Energy Monitor
In stock

Energy Monitoring Systems

Emporia Vue 3 Home Energy Monitor

$99

View Product
Emporia Vue 3 3-PHASE Energy Monitor
In stock

Energy Monitoring Systems

Emporia Vue 3 3-PHASE Energy Monitor

$109

View Product
Enel X JuiceBox Residential 48 Level 2 Hardwired
Not in stock

EV Charger

Enel X JuiceBox Residential 48 Level 2 Hardwired

$739

View Product
QuickBOLT Stone Coated Roof Height Adjustable 18mm for Side Mount Rails - Short
In stock

Solar System Fasteners

QuickBOLT Stone Coated Roof Height Adjustable 18mm for Side Mount Rails - Short

$301

View Product
QuickBOLT Deck T Mount Solar Panel Fastener Kit
In stock

Solar System Fasteners

QuickBOLT Deck T Mount Solar Panel Fastener Kit

$527

View Product
QuickBOLT Flat Tile Roof Hook for Solar Panel Side Mount Rails
In stock

Solar System Fasteners

QuickBOLT Flat Tile Roof Hook for Solar Panel Side Mount Rails

$191

View Product
Emporia Level 2 48 AMP UL Listed EV Charger with Invite2Charge
In stock

EV Charger

Emporia Level 2 48 AMP UL Listed EV Charger with Invite2Charge

$699

View Product
Enel X JuiceStand Pro 48" US Single or Dual Mount Commercial (JuiceBoxes sold separately)
Not in stock

EV Charger

Enel X JuiceStand Pro 48" US Single or Dual Mount Commercial (JuiceBoxes sold separately)

$649

View Product
QuickBOLT Throne - The Set Screw Standing Seam Mount
In stock

Solar System Fasteners

QuickBOLT Throne - The Set Screw Standing Seam Mount

$272

View Product
Lion Energy 100W 24V Portable Solar Panel
In stock

Portable Solar Panels

Lion Energy 100W 24V Portable Solar Panel

$199

View Product
Enel X JuiceBox Residential 32 Level 2 Plug-in
Not in stock

EV Charger

Enel X JuiceBox Residential 32 Level 2 Plug-in

$669

View Product
BigBattery 48V EAGLE –  LiFePO4 – 30Ah – 1.53kWh
Not in stock

LiFePO4 Battery

BigBattery 48V EAGLE –  LiFePO4 – 30Ah – 1.53kWh

$699

View Product
Lion Energy Savanna Charge Controller
Not in stock

Solar Charge Controller

Lion Energy Savanna Charge Controller

$79

View Product
Lion Energy EMP Bag
In stock

Electronics Bag

Lion Energy EMP Bag

$199

View Product
Enel X JuiceBox Residential 40 Level 2 Plug-in
Not in stock

EV Charger

Enel X JuiceBox Residential 40 Level 2 Plug-in

$699

View Product
Enel X JuiceBox Residential 32 Level 2 Hardwired
Not in stock

EV Charger

Enel X JuiceBox Residential 32 Level 2 Hardwired

$669

View Product
Renogy 1200W/2500W Tiny House Home Cabin Kit - RKIT2500D-CLFP
In stock

Solar Energy Kits

Renogy 1200W/2500W Tiny House Home Cabin Kit - RKIT2500D-CLFP

$7899

View Product
QuickBOLT 3" Microflashing Stainless Steel & EPDM - 17669
In stock

Solar System Fasteners

QuickBOLT 3" Microflashing Stainless Steel & EPDM - 17669

$140

View Product
QuickBOLT 4" Microflashing 304 Stainless Steel - 17659
In stock

Solar System Fasteners

QuickBOLT 4" Microflashing 304 Stainless Steel - 17659

$120

View Product
SunGoldPower 10000W DC 24V Split Phase Pure Sine Wave Inverter With Charger
Not in stock

Inverter

SunGoldPower 10000W DC 24V Split Phase Pure Sine Wave Inverter With Charger

$2985

View Product
SunGoldPower 4000W DC 48V Split Phase Pure Sine Wave Inverter With Charger UL1741 Standard
In stock

Inverter

SunGoldPower 4000W DC 48V Split Phase Pure Sine Wave Inverter With Charger UL1741 Standard

$995

View Product

All On-Grid All-Electric Home

The team capped off an existing gas line early in the construction phase. The couple wanted to decarbonize the house and reduce their risk of exposure to carbon monoxide. With a grid-tied 5.4 kW solar array on the south-facing roof slope, they now power much of their all-electric home. Fisher enjoys checking in with the app on his phone that shows how much energy they've purchased daily, how much energy they've generated, the energy stored in their Tesla Powerwall home battery, and how much electricity they've used. "Very early in the morning," he says. "we may need to draw from the grid until the sun comes up.

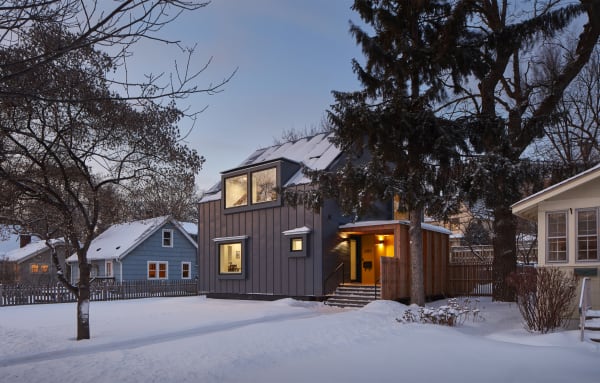

Fisher Residence Exterior Winter
Fisher Residence Exterior in Winter. Photo Credit: Gaffer Photography

The home isn't a certified Passive House but fulfills many Passive House qualifications. The mechanicals includes an electric ComfortMaker SoftSound heating and cooling unit, along with a highly efficient heat pump air-exchanger. The home has LED lights and an electric kitchen range. Interior finishes include maple hardwood floors and white-painted walls.

Loading...
Loading...
Loading...
Fisher Residence Living Room
Fisher Residence Living Room. Photo Credit: Gaffer Photography

For now, though, the couple "uses every square inch of the house," Fisher adds. Having achieved a low-carbon life, he adds, "It's great living in this all-electric house."
